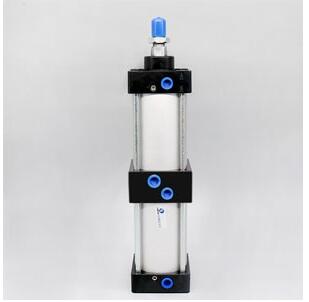

SCT heavy pneumatic cylinder

ENGELEC SCT heavy pneumatic cylinder
  • SCT

  • ENGELEC

Availability:

ENGELEC SCT heavy pneumatic cylinder


Bore diameter(mm)3240506380100
Action patternDouble   action
Working mediumAir (clean   air filtered by 40μm)
Working pressure0.1~0.9Mpa(1~9kgf/㎝2)
Guaranteed pressure resistance1.35Mpa(13.5kgf/cm2)
Working temperature range﹣5~70℃
Buffer typeAdjustable   buffer
Buffer stroke(mm)2434
Connect tube diameter1/8"1/4"3/8"1/2"
Body materialAluminum   alloy
