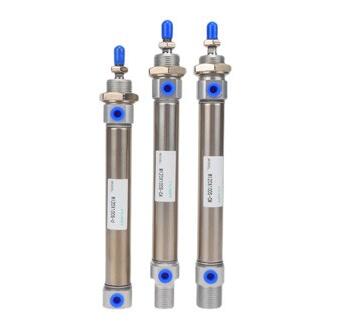

MI C85 CD85N Stainless Steel Mini Pneumatic Air Cylinder

ENGELEC MI C85 CD85N Stainless Steel Mini Pneumatic Air Cylinder
  • MI C85 CD85N

  • ENGELEC

Availability:

ENGELEC pneumatic SMC Type MI C85 CD85N Stainless Steel Mini Pneumatic Air Cylinder


Bore Size (mm) 8 10 12 16 20 25
Fluid Air
Acting   Type Double   Acting, Single Acting, Spring Return, Single Acting,   Spring Extended
Max.   Pressure 1.0   MPa
Min.   Pressure (MPa) 0.1 0.08 0.05
Working   Temperature -20   ~ +80℃ (Built-in Magnet type:   -10 ~ +60℃)
Cushion Rubber Bumper (Standard),Air   Cushion (Optional)
Piston   Speed 50   ~ 1500 mm/s
Lubrication Not   Required
Allowed   kinetic energy (Rubber Bumper) 0.02 J 0.03 J 0.04 J 0.09 J 0.27 J 0.4 J
Allowed   kinetic energy (Air Cushion) 0.17 J 0.19 J 0.4 J 0.66 J 0.97 J
Port   Size M5X0.8 G1/8

* Note: NPT, PT thread also available; Please use turbine oil Class 1 ISOVG32, if lubricated.

ordering code MI C85 pneumatic cylinder.jpg

1 drawing MI C85 pneumatic cylinder.jpg

2 drawing MI C85 pneumatic cylinder.jpg

3 drawing dimension MI C85 pneumatic cylinder.jpg
