CQ2 series thin cylinder

Name: CQ2 series thin cylinder
Brand: ENGELEC
Rating: 5.0 (45 reviews)

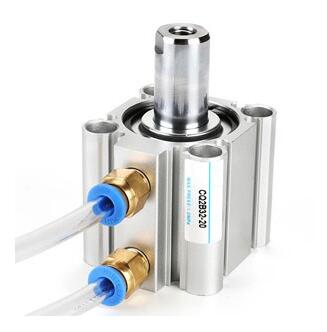

ENGELEC CQ2 series thin cylinder

Model:
CQ2
Brand:
ENGELEC

Availability:



Enquiry Add to Basket

Product Description

ENGELEC CQ2 series thin cylinder pneumatic

Bore Size (Mm)	12	16	20	25	32	40	50	63	80	100
Port Size Rc(Pt)	M5x0.8				1/8		1/4		3/8
Fluid	Filtered Clean Air
Action	Double Acting/ Single Acting
Proof Pressure (Mpa)	1.5
Operating Pressure Range (Mpa)	0.05~1.0
Ambient And Uid Temperature	-5~60℃(No Freezing)
Piston Speed	50~500 mm/s
Cushion	Rubber Bumper
*Lubrication	Not Required

Bore Size	Standard Stroke (mm)	Middle Stroke	Auto Switch/
(mm)	Standard Stroke (mm)	Range (mm)	Rail Mounting
12,16	5, 10, 15, 20, 25, 30	1~29	D-z80k
20,25	5, 10, 15, 20, 25, 30, 35, 40, 45, 50	1~49
32,40	5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100	1~99
50,63,80,100	10, 15, 20, 25, 30, 35, 40, 45, 50, 75, 100	1~99

pneumatic cylinder thin cylinder

If you have any enquiry about quotation or cooperation,please feel free to email us at info@engelec.cn or use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
