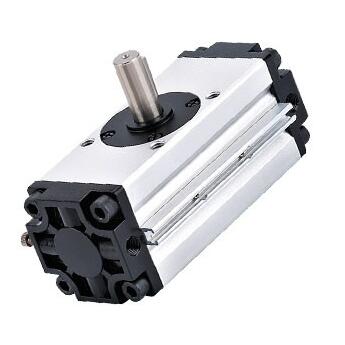

CRA1 Rotary rack swing cylinder

ENGELEC CRA1 Rotary rack swing cylinder
  • CRA1



ENGELEC CRA1 Rotary rack swing cylinder pneumatic

Cylinder bore size mm: 32, 50, 63, 80, 100

Working medium: Air

Acting mode: double acting

Working pressure range:0.1- 1Mpa

Fluid temperature: 0-60℃

Permissible swing angle: +40

Output torque(N.m): 1.9, 9.3, 17, 32, 74

No air buffer permissible kinetic energy( 0.1, 0.51, 1.2, 1.6, 5.5

Air buffer permissible kinetic energy( 10, 15, 20, 30

Swing time range(min/900): 0.2-1, 0.2-2, 0.2-3, 0.2-4, 0.2-5

Port size: M5*0.8, 1/8, 1/4, 3/8
