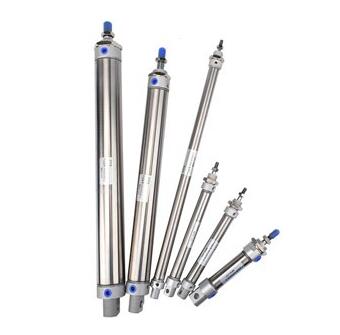

MA series stainless steel mini cylinder

ENGELEC MA series stainless steel mini cylinder
  • MA



ENGELEC MA series stainless steel mini cylinder pneumatic

Bore size (mm) 16 20 25 32 40  50     63
Action Double acting type
Fluid Air(filtered   through 40µ filter element)
Operating pressure 0.1~0.9   MPa(1~9kgf/cm²)
Proof pressure 1.35 MPa(13.5kgf/cm²)
Ambient and fluid temperature -5~70°C
Cushion Without   cushion
Port size M5 1/8''
Body material Stainless   steel

MA pneumatic cylinder ordering code.jpg

MA pneumatic cylinder dimension (2).jpg
