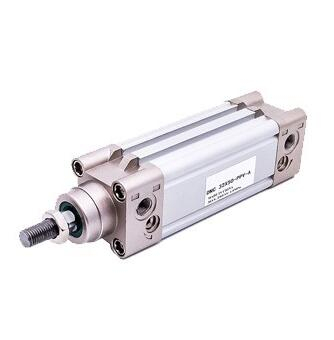

DNC ISO6431 standard cylinder

ENGELEC DNC ISO6431 standard cylinder
  • DNC

  • ENGELEC

Availability:

ENGELEC DNC ISO6431 standard cylinder pneumatic


Ordering code

DNC

63×50

PPV

A

Serial code

Bore x stroke

None: no buffer

None: standard

DNC: Basic model


PPV: with buffer

A: Built-in   magnetic ring

HNC: axial foot




FNC: front and rear   flanges




SNCB: Double ear base




SNC: Single ear base




Specifications

Bore(mm)3240506380100
Action typeDouble   action
Working   mediumAir (clean   air filtered by 40μm)
Working   pressure0.1~0.9Mpa(1~9kgf/㎝2)
Guarantee pressure resistance1.35Mpa(13.5kgf/cm2)
Working temperature range﹣5~70℃
Buffer typeAdjustable   buffer
Buffer stroke(mm)2432
Connect tube size1/8"1/4"3/8"1/2"
Body   materialAluminum   alloy
