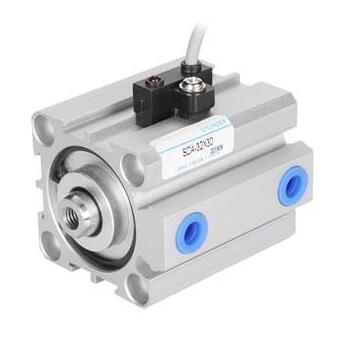

SDA series compact thin cylinder

Name: SDA series compact thin cylinder
Brand: ENGELEC
Rating: 5.0 (13 reviews)

ENGELEC SDA series compact thin cylinder

Model:
SDA
Brand:
ENGELEC

Availability:


Enquiry Add to Basket

Product Description

ENGELEC SDA series compact thin cylinder pneumatic

SDA	50×50	-	S	B
Serial NO.	Cylinder inner borex stroke		Magnet code	Piston rod thread type
SDA： Standard			Blank:None	Blank:female thread
SDAD： Biaxial type			S：With	B：external thread
SDAJ： Biaxial adjustable type				N：No thread

Type	Standard			Magnetic type			D	E		F	G	K1	L	M	N1	J	Q
Bore/Symbol	A	B1	C	A	B1	C	D	Stroke＞10	Stroke≤10	F	G	K1	L	M	N1	J	Q
12	40	5	17	50	5	27	-	6		4	1	M3x0.5	10.2	6.3	6.3	4	13
16	42.5	5.5	18.5	52.5	5.5	28.5	-	6		4	1.5	M3x0.5	11	7.3	7.3	4	13
20	47.5	5.5	19.5	57.5	5.5	29.5	36	8		4	1.5	M4x0.7	15	7.5	7.5	5	16
25	55	6	21	65	6	31	42	10		4	2	M5x0.8	17	8	8	6	19
32	61.5	7	24.5	71.5	7	34.5	50	8	12	4	3	M6x1	22	9	9	6	21
40	65	7	26	75	7	36	58.5	9	12	4	3	M8x1.25	28	10	10	8	21
50	73	9	28	83	9	38	71.5	11	15	5	4	M10x1.5	38	10.5	10.5	11	21
63	77	9	32	87	9	42	84.5	11	15	5	4	M10x1.5	40	11.8	11.8	11	21
80	94	11	41	104	11	51	104	14	20	6	5	M14x1.5	45	14.5	14.5	13	24
100	105	12	51	115	12	61	124	18	20	7	5	M18x1.5	55	20.5	20.5	13	24

pneumatic cylinder compact thin cylinder
