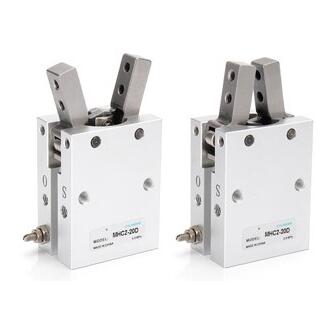

MHC2 HFY pneumatic cylinder finger

ENGELEC MHS2 MHS3 MHS4 pneumatic cylinder finger
  • MHC2 HFY



ENGELEC MHC2 HFY pneumatic cylinder finger

Bore(mm) 6 10 16 20 25 32 40
Working Medium Filtered   compressed Air
Motion Pattern Double   Action Type, Single Acting Type,
Max. Operating Pressure Double-acting   Type 0.15~0.7Mpa 0.2~0.7Mpa 0.1~0.7Mpa
Single-acting Type 0.3~0.7Mpa 0.35~0.7Mpa 0.25~0.7Mpa
Repeat accuracy(mm) ±0.01 ±0.02
Max operating frequency(c.p.m) 180 60
Operating Temperature -10~60°C
Lubrication No-lube
Cylinder built-in magnet ring With(standard)
Joint Pipe Bore M3×0.5 M5×0.8

ordering code MHC2 HFY pneumatic cylinder finger.jpg

drawing 1 MHC2 HFY pneumatic cylinder finger.jpg

drawing 4 MHC2 HFY pneumatic cylinder finger.jpg
