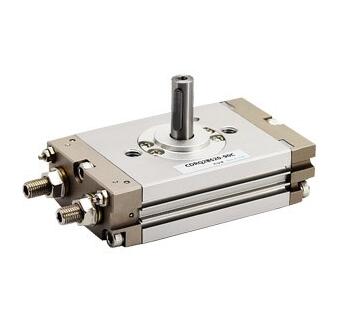

CRQ2 thin rack rotary cylinder

ENGELEC CRQ2 thin rack rotary cylinder
  • CRQ2

  • ENGELEC

Availability:

ENGELEC CRQ2 thin rack rotary cylinder pneumatic


Ordering code

CRQ2BS20-90
ModelAxisBore size
Pendulum angle
CRQ2B: Basic   typeS:Single axis10
90: 80~180degree
CDRQ2B: With   magnetW:Double axis15
180:170~190degree


20



30



40

Bore   size (mm)1015203040
FluidAir
ActionDouble   acting
Minimum operating pressure0.15   MPa0.1   MPa
Maximum operating pressure0.7   MPa1.0   Mpa
Ambient and fluid temperature0 to   60°C (No freezing)
CushionRubber   bumperNone/Adjustable   air cushion at both ends
LubricationNon-lube
Output (N·m)0.30.751.83.15.3
Auto Swith(Option)Solide   state switch(3-wire, 2-wire)
Port SizeM5x0.8G1/8
Note   1: Output under the operating pressure at 0.5 MPa.
