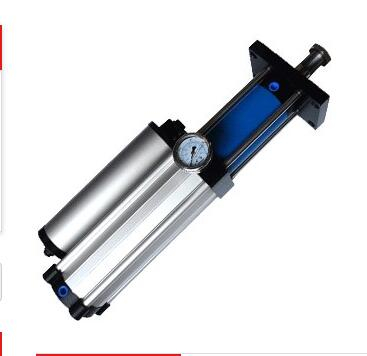

MPTF MPTS series air and liquid booster cylinder

ENGELEC MPTF MPTS series air and liquid booster cylinder
  • MPTF MPTS
  • ENGELEC
Availability:

ENGELEC MPTF MPTS series air and liquid booster cylinder pneumatic


MPTF: fast type

MPTS: built in oil groove type

Bore size mm: 63, 80, 100, 125, 160

Overall stroke mm: 50, 100, 150, 200

Booster stroke mm: 5, 10, 15, 20

Output force Ton: 1, 3, 5, 10, 13, 15, 20

Acting mode: double acting

Working strength: 2-7kg/cm2

Circling oil: ISO Vg32

Working temperature: 5~60℃

Operating speed: 50-700mm/s

Guaranteed withstand pressure of oil cylinder: 300kg/cm

Guaranteed withstand pressure of air cylinder: 15kg/cm

Working frequency: more than 20 times per minute

Bore size mm: 50, 63, 80

Booster stroke mm: 5, 10, 15, 20
