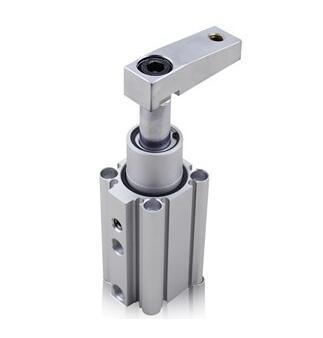

MK MKB series back rotation clamp cylinder

ENGELEC MK / MKB series back rotation clamp cylinder pneumatic

Cylinder bore size mm: 12,16, 20, 25, 32, 40, 50, 63

Working media: air

Action type: double acting

Working pressure range: 0.1-1Mpa

Temperature range: magnetic switch -10~60℃; non magnetic switch: -10~70℃

Piston speed: 50/200mm/s

Buffering: Rubber buffer

Back rotation angle: 900+/-100

Back rotation direction: L/R

Back rotation distance mm: 7.5, 9.5, 15, 19

Clamping distance mm: 10, 20, 30, 50

Allowed bending torque N.m: 1, 3.8, 7, 13, 27, 47, 107, 182

Clamping force N: 40, 75, 100, 185, 300, 525, 825, 1400

Port size: M5*0.8, 1/8, 1/4
