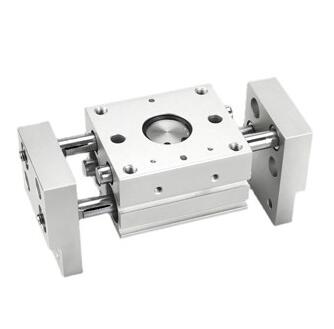

MHL2 pneumatic cylinder finger

ENGELEC MHL2 pneumatic cylinder finger
  • MHL2

  • ENGELEC

Availability:

ENGELEC Pneumatic Cylinder MHL2 Air Parallel Wide Finger Pneumatic Double Acting Wide Opening Air Gripper


Bore size   (mm) 10 16 20 25 32 40
Fluid Air
Action type Double   acting
Minimum operating pressure 0.15MPa 0.10MPa
Maximum operating pressure 0.60MPa
Ambient and fluid temperature -10   to 60°C
Repeatability ±0.1mm
Retention N 14 45 74 131 228 396
Port Size M5x0.8 1/8

ordering code MHL2 pneumatic cylinder finger.jpg

1 drawing MHL2 pneumatic cylinder finger.jpg

11 drawing MHL2 pneumatic cylinder finger.jpg12 drawing dimension MHL2 pneumatic cylinder finger.jpg
