VF series solenoid valve pneumatic

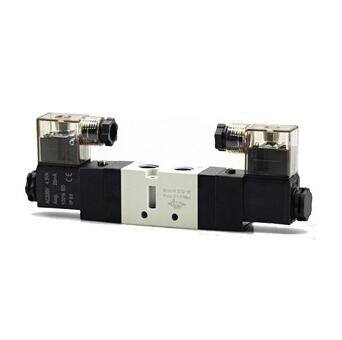

ENGELEC VF series solenoid valve

Model: VF3130-02, VF3230-02, VF3330-02, VF3430-02, VF3530-02

130: single coil double position

230: double coil double position

G: wiring type

D: plug type

B: manual operation

Media: Air

Action mode: internal pilot type

Effective sectional area: 16mm2(Cv=0.89), 12mm2(Cv=0.67)

Port size: input=output=1/4, exhaust port=PT1/8

Working pressure: 0.15 -0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0~60℃

Voltage range: +/-10%

Power consumption: AC 5.5VA, DC 4.8W

Insulation level: F

Protection level with protective sleeve: IP65

Max operating frequency: 5 cycle per second

Min excitation time: 0.05 second

Working voltage: DC12V, DC24V, AC110V, AC220V
