4V3
ENGELEC
Availability: | |
---|---|

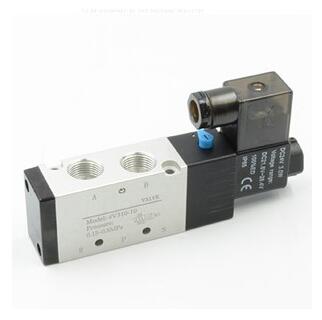

ENGELEC 4V3 series solenoid valve pneumatic
4V | 3 | 10 | 10 | B | AC220V | H |
Model | Series | Series code | Connect tube size | Connect tube type | Voltage | Structure type |
4V:2(3) potition 5 port solenoid valve | 300 series | 10:single head double position | 08:1/4" | Blank:Tube connection | DC12V DC24V | Blank: spring reset |
4A:2(3) potition 5 port air valve | 20:double head double position | 10:3/8" | B:2-position 5-way board connection 3-position 5-way board connection | AC24V 50Hz/60Hz | H:Rear piston reset | |
3V:2 potition 5 port solenoid valve | 30C:Two-head three-position closed type | AC110V 50Hz/60Hz | ||||
3A:2 potition 5 port air valve | 30E:Two-head three-position exhaust type | NC:2-position 3-way normally closed type | AC220V 50Hz/60Hz | |||
30P:Double-head three-position pressure type | NO:2-position 3-way normally open type | AC380V 50Hz/60Hz |
Model | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V130C-10 | 4V330E-10 | 4V330P-10 |
4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A130C-10 | 4A330E-10 | 4A330P-10 | |
Number of positions | 2-position 5-way | 3-position 5-way | 2-position 5-way | 3-position 5-way | ||||||
Effective cross-sectional area | 25mm²(CV=0.56) | 18mm²(CV=0.40) | 30mm²(CV=0.67) | 18mm²(CV=0.5) | ||||||
Model | 3V310-08 | 3V320-08 | 3A210-08 | 3A220-08 | 3V310-10 | 3V220-10 | 3A210-10 | 3A220-10 | ||
Number of positions | 2-position 5-way | |||||||||
Effective cross-sectional area | 14mm²(CV=0.78) | 16mm²(CV=0.89) | ||||||||
Connect tube size | Inlet = Outlet = Exhaust=G1/4" | Inlet = Outlet=G3/8” Exhaust=G1/4" | ||||||||
Working medium | Air | |||||||||
Action type | Internal pilot | |||||||||
Working pressure | 0.15~0.8Mpa | |||||||||
Max pressure resistance | 1.2Mpa | |||||||||
Working temperature | 5~50℃ | |||||||||
Voltage range | ±10% | |||||||||
power consumption | AC:5.5VA DC:4.8W | |||||||||
Insulation / Protection level | F level IP65 | |||||||||
Connection type | Direct outlet or segment type | |||||||||
Max operating frequency | 5 times per second | |||||||||
Shortest excitation time | 0.05 seconds |
