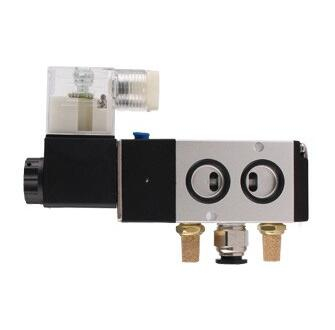

4M series solenoid valve pneumatic

ENGELEC 4M series solenoid valve pneumatic
  • 4M

  • ENGELEC

Availability:
4M series solenoid valve pneumatic

ENGELEC 4M series solenoid valve pneumatic


Model4M110-M54M110-064M210-064M210-084M310-084M310-104M410-15
4M120-M54M120-064M220-064M220-084M320-084M320-104M420-15
Working MediaAir
Action ModeInternal Pilot Type
Position5/2Post
LubricationNo Need
Working Pressire0.15~0.8Mpa
Proof Pressure1.0Mpa
Working Temperature0~60℃
Voltage Range±10%
Power ConsumptionAC:2.8VA DC:2.8WAC:5.5VA DC:4.8W
Insulation GradeF Level
Protection ClassIP65(DIN40050)
Connecting TypeTerminal type
Max.Operating Frequency5Cycle/Sec
Min.Excitation Time0.05Sec
MaterialBodyAluminum Alloy
SealNBR
Model4M110-M54M110-064M210-06
4M120-M54M120-064M220-06
Effective Sectional Area5.5mm^2(Cv=0.31)12.0mm^2(Cv=0.67)14.0mm^2(Cv=0.78)
Port SizeInput=Output=Exhaust Port=G1/8Input=Output=G1/8Input=G1/4Output=G1/8

4M2108A
Modelseriesvalve typePort sizeVoltage
4V:5/2 way or 5/3 way2:200 series10:Single solenoid08:PT1/4"A: AC220V
4A:5/2 way or 5/3 way1:100 series20:double solenoid06:PT1/8"B:DC24V
3V:3/2 Way3:300 series
10:PT3/8"C:AC110V
3A:3/2 Way

M5:M5E:AC24V
4M:5/2 Way


F:DC12V


Model4M110-M54M110-064M210-06
4M120-M54M120-064M220-06
Effective Sectional Area5.5mm^2(Cv=0.31)12.0mm^2(Cv=0.67)14.0mm^2(Cv=0.78)
Port SizeInput=Output=Exhaust Port=G1/8Input=Output=G1/8Input=G1/4Output=G1/8

Model4M210-084M310-084M310-104M410-15
4M220-084M320-084M320-104M420-15
Effective Sectional Area16.0mm^2(Cv=0.89)25.0mm^2(Cv=1.40)30.0mm^2(Cv=1.68)50.0mm^2(Cv=2.79)
Port SizeInput=Output=G1/4Input=G3/8Output=G1/4Input=G3/8,Exhaust Port=G1/4Input=Output=G1/2
