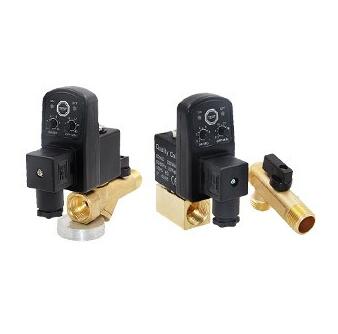

OPT-A OPT-B electronic drain valve pneumatic

ENGELEC OPT-A OPT-B electronic drain valve pneumatic
  • OPT-A OPT-B

  • ENGELEC

Availability:
OPT-A OPT-B electronic drain valve pneumatic

ENGELEC ENGELEC OPT-A OPT-B electronic drain valve pneumatic


Timer: OPT-A, OPT-B

Interval time OFF: 0.5-45 mins

Discharge time ON.: 0.5-10 seconds

Manual test button: micro switch

Power supply: 24-240V AC/DC; AC380V can be customized

Current consumption: max 4mA

Temperature: -40~+60℃

Protection level: IP65

Cover material: flame retardant ABS plastic

Electrical connection: DIN43650A

Indicator: LED indicator on/off

Valve: OPT-A, OPT-B

Type: 2/2 port direct acting solenoid valve

OPT-A port size: G1/2

OPT-B port size: input G1/2 male thread, output G1/2 female thread

Max working pressure: 1Mpa

Ambient temperature range: 2-55℃

Highest medium temperature: 90℃

OPT-A valve body: brass or stainless steel

OPT-B valve body: brass

Insulation level: H

Protection level: IP65

Voltage: DC24V, AC220V

Voltage range: +/-10%
