MVSC 220 260 330
ENGELEC
Availability: | |
---|---|

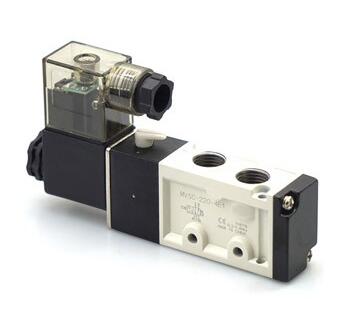

ENGELEC MVSC 220 260 330 solenoid valve pneumatic
Model: MVSC-220/260/300-4E1, MVSC-220/260/300-4E2, MVSC-220/260/300-4E2C, MVSC-220/260/300-4E2P, MVSC-220/260/300-4E2R
Media: Air
Action mode: Internal pilot
Position: 5/2 port, 5/3 port
E1: single coil
E2: double coil
C: three position closed
P: three position pressurized
R: three position exhaust
Working pressure: 0.15 -0.8Mpa
Proof pressure: 1Mpa
Working temperature: 0-60℃
Effective sectional area: 16mm2(Cv=0.89), 18mm2(Cv=1.0), 25mm2(Cv=1.4), 35mm2(Cv=1.94)
Valve port size: input=output=1/4, exhaust port=PT1/8; input=output=Exhuast port=PT1/8
Max operating frequency: 3 cycle and 5 cycle per second
Insulation level: F
Protection level: IP65(DIN40050)
Min excitation time: 0.05 second
Connecting type: plug connect
Working voltage: DC12V, DC24V, AC24V, AC110V, AC220V, AC380V
Voltage range: +/-10%
