MS HSV
ENGELEC
Availability: | |
---|---|

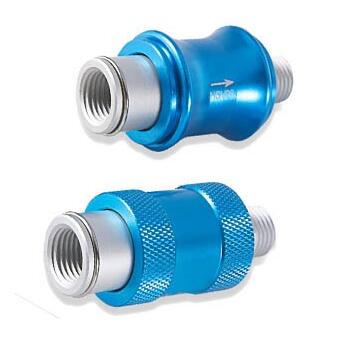

ENGELEC MS HSV series sliding hand valve pneumatic
Ordering code
HSV | / | 8 | / | SS |
Model name | Tube size | Dovt Thread | ||
Hand slide valve | 06: G1/8 | Blank: Standard | ||
08: G1/4 | SS: Double male thread | |||
10: G3/8 | FF: Double female thread | |||
15: G1/2 | SF: Male and female thread |
Specifications
Model | HSV-06 | HSV-08 | HSV-10 | HSV-15 |
Fluid | Air | |||
Operation | Manual control direct acting type | |||
Port size | G1/8 | G1/4 | G3/8 | G1/2 |
CV Value | 1.28MM | 2.2MM | 3.5MM | 7.8MM |
Value type | 3/2way | |||
Lubrication | Not required | |||
Pressure range | 0-1.0Mpa | |||
Proof pressure | 1.5Mpa | |||
Temperature | -20-70℃ | |||
Material body | Aluminum alloy |
