4F210
ENGELEC
Availability: | |
---|---|

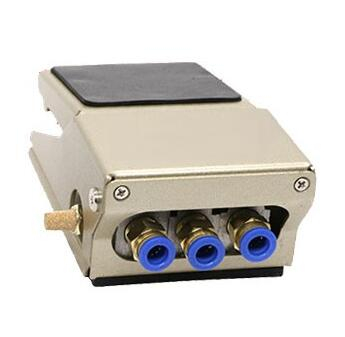

ENGELEC FV series foot valve pneumatic
Ordering Code:
4F | / | 210 | / | 08 | L |
Model | 210: Double position 5 way | Port size | L: Self-locking | ||
08:1/4 | G: Protective cover | ||||
LG: Self-locking + protective cover |
Model name: FV-320, FV-420, FV-02
Working media: Air
Position: 3/2 port, 4/2 port
Max working pressure: 0.8Mpa
Proof pressure: 1.0Mpa
Temperature range: -20~70℃
Port size: G1/4
ENGELEC FV series foot valve pneumatic
Ordering Code:
4F | / | 210 | / | 08 | L |
Model | 210: Double position 5 way | Port size | L: Self-locking | ||
08:1/4 | G: Protective cover | ||||
LG: Self-locking + protective cover |
Model name: FV-320, FV-420, FV-02
Working media: Air
Position: 3/2 port, 4/2 port
Max working pressure: 0.8Mpa
Proof pressure: 1.0Mpa
Temperature range: -20~70℃
Port size: G1/4
