AF BF
ENGELEC
Availability: | |
---|---|

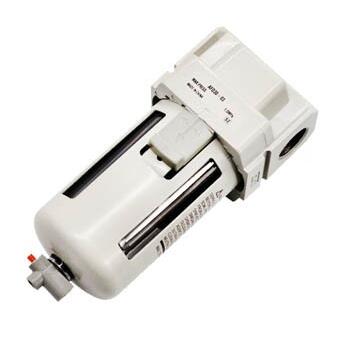

ENGELEC AF BF series air filter
Model | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 | |
Port Size | M5*0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
Water Cup Capacity | 4 | 15 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 | |
Rated flow(L/Min) | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 | |
Working Media | Compressed Air | ||||||||||
Proof Pressure | 1.5Mpa | ||||||||||
Max. Working Pressure | 0.85Mpa | ||||||||||
Ambient Temperature | 5-60℃ | ||||||||||
Filter Precision | 40μm(Normal)or 5μm(customized) | ||||||||||
Bracket(one) | - | B240A | B320 | B340A | B440A | B540A | B640A | ||||
Material | Body materiral | Aluminum Alloy | |||||||||
Cup materiral | PC | ||||||||||
Cup Cover | AF1000-AF2000: without AW3000-AW5000: with(Steel) |
ENGELEC AF BF series air filter
Model | AF1000-M5 | AF2000-01 | AF2000-02 | AF3000-02 | AF3000-03 | AF4000-03 | AF4000-04 | AF4000-06 | AF5000-06 | AF5000-10 | |
Port Size | M5*0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
Water Cup Capacity | 4 | 15 | 15 | 20 | 20 | 45 | 45 | 45 | 130 | 130 | |
Rated flow(L/Min) | 110 | 750 | 750 | 1500 | 1500 | 4000 | 4000 | 6000 | 7000 | 7000 | |
Working Media | Compressed Air | ||||||||||
Proof Pressure | 1.5Mpa | ||||||||||
Max. Working Pressure | 0.85Mpa | ||||||||||
Ambient Temperature | 5-60℃ | ||||||||||
Filter Precision | 40μm(Normal)or 5μm(customized) | ||||||||||
Bracket(one) | - | B240A | B320 | B340A | B440A | B540A | B640A | ||||
Material | Body materiral | Aluminum Alloy | |||||||||
Cup materiral | PC | ||||||||||
Cup Cover | AF1000-AF2000: without AW3000-AW5000: with(Steel) |
