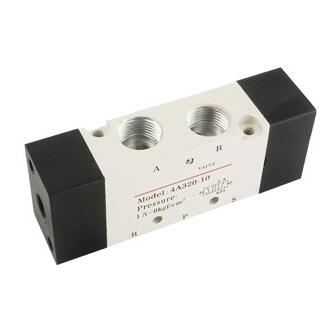

4A3 series air control pulse valve pneumatic

ENGELEC 4A3 series air control pulse valve pneumatic

Model: 4A310, 4A320, 4A330C, 4A330E, 4A330P

Media: Air

Action mode: Exterior control

Position: 5/2 port, 5/3 port

10: single coil double position

20: Double coil double position

30C: Double coil three position closed type

30E: Double coil three position exhaust type

30P: Double coil three position pressurized type

Working pressure: 0.15 -0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0-60℃

Effective sectional area: 18mm2(Cv=1.0), 25mm2(Cv=1.40), 30 mm2(Cv=1.68)

Valve port size: input=output=G3/8, exhaust port=G1/4, input=output=exhaust port=G1/4

Max operating frequency: 3 Cycle and 5 cycle per second
