AL SERIES
ENGELEC
| Availability: | |
|---|---|

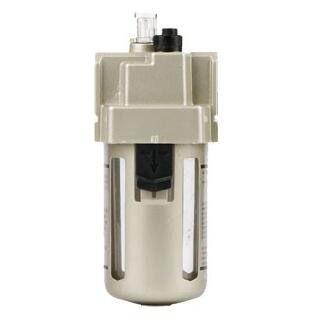

ENGELEC AL series pneumatic lubricator
| Type | AL1000-M5 | AL2000-01 | AL2000-02 | AL3000-02 | AL3000-03 | AL4000-03 | AL4000-04 | AL4000-06 | AL5000-06 | AL5000-10 |
| Port Size | M5*0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | G1/2 | G3/4 | G3/4 | G1 |
| Oil Cup capacity(ml) | 7 | 25 | 25 | 50 | 50 | 130 | 130 | 130 | 130 | 130 |
| Rated Flow(L/Min) | 95 | 800 | 800 | 1700 | 1700 | 5000 | 5000 | 5000 | 7000 | 7000 |
| Working Media | Compressed air | |||||||||
| Proof Pressure | 1.5Mpa | |||||||||
| Max. Working Pressure | 0.85Mpa | |||||||||
| Ambient Temperature | 5~60℃ | |||||||||
| Suggested Lubrication Oil | Turbine No.1 oil (ISO VG32) | |||||||||
| Bracket (one) | B240A | |||||||||
| Material | Body Material | Aluminium alloy | ||||||||
| Cup Material | PC | |||||||||
| Cup Cover | AL1000~AL2000: without AL3000~AL5000: with (Steel) | |||||||||
