AC series
ENGELEC
Availability: | |
---|---|

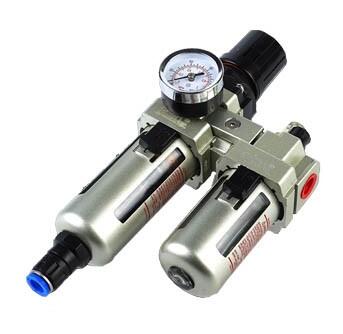

ENGELEC AC series relief type FRL regulator valve two units
Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | |
Module | Filter Regulator | AW1000 | AW2000 | AW2000 | AW3000 | AW3000 |
Lubricator | AL2000 | AL2000 | AL2000 | AL3000 | AL3000 | |
Port Size | M5×0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | |
Pressure Gauge Port Size | M5×0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | |
Rated Flow(L/Min) | 90 | 500 | 500 | 1700 | 1700 | |
Working Media | Compressed Air | |||||
Proof Pressure | 1.5Mpa | |||||
Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||
Ambient Temperature | 5~60℃ | |||||
Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
Bracket(one) | Y10T | Y20T | Y30T | |||
Pressure Gauge | Y25-M5 | Y40-01 | ||||
Material | Body Material | Aluminum Alloy | ||||
Cup Material | PC | |||||
Cup Cover | AC1010~AC2010:without AC3010~AC5010:with(Steel) |
Model | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
Module | Filter Regulator | AW4000 | AW4000 | AW4000 | AW5000 | AW5000 |
Lubricator | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | |
Port Size | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
Pressure Gauge Port Size | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | |
Rated Flow(L/Min) | 3000 | 3000 | 3000 | 5000 | 5000 | |
Working Media | Compressed Air | |||||
Proof Pressure | 1.5Mpa | |||||
Range of Regulation | 0.05~0.85Mpa | |||||
Ambient Temperature | 5~60℃ | |||||
Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
Bracket(one) | Y40T | Y50T | Y60T | |||
Pressure Gauge | Y50-02 | |||||
Material | Body Material | Aluminum Alloy | ||||
Cup Material | PC | |||||
Cup Cover | AC1010~AC2010:without AC3010~AC5010:with(Steel) |
ENGELEC AC series relief type FRL regulator valve two units
Model | AC1010-M5 | AC2010-01 | AC2010-02 | AC3010-02 | AC3010-03 | |
Module | Filter Regulator | AW1000 | AW2000 | AW2000 | AW3000 | AW3000 |
Lubricator | AL2000 | AL2000 | AL2000 | AL3000 | AL3000 | |
Port Size | M5×0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | |
Pressure Gauge Port Size | M5×0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | |
Rated Flow(L/Min) | 90 | 500 | 500 | 1700 | 1700 | |
Working Media | Compressed Air | |||||
Proof Pressure | 1.5Mpa | |||||
Range of Regulation | 0.05~0.7Mpa | 0.05~0.85Mpa | ||||
Ambient Temperature | 5~60℃ | |||||
Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
Bracket(one) | Y10T | Y20T | Y30T | |||
Pressure Gauge | Y25-M5 | Y40-01 | ||||
Material | Body Material | Aluminum Alloy | ||||
Cup Material | PC | |||||
Cup Cover | AC1010~AC2010:without AC3010~AC5010:with(Steel) |
Model | AC4010-03 | AC4010-04 | AC4010-06 | AC5010-06 | AC5010-10 | |
Module | Filter Regulator | AW4000 | AW4000 | AW4000 | AW5000 | AW5000 |
Lubricator | AL4000 | AL4000 | AL4000 | AL5000 | AL5000 | |
Port Size | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 | |
Pressure Gauge Port Size | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | |
Rated Flow(L/Min) | 3000 | 3000 | 3000 | 5000 | 5000 | |
Working Media | Compressed Air | |||||
Proof Pressure | 1.5Mpa | |||||
Range of Regulation | 0.05~0.85Mpa | |||||
Ambient Temperature | 5~60℃ | |||||
Filter Precision | 40 μ m(Normal)or 5 μ m(Customized) | |||||
Suggested Lubricating Oil | Turbine NO.1 Oil(ISO VG32) | |||||
Bracket(one) | Y40T | Y50T | Y60T | |||
Pressure Gauge | Y50-02 | |||||
Material | Body Material | Aluminum Alloy | ||||
Cup Material | PC | |||||
Cup Cover | AC1010~AC2010:without AC3010~AC5010:with(Steel) |
