4A2 series air control pulse valve pneumatic

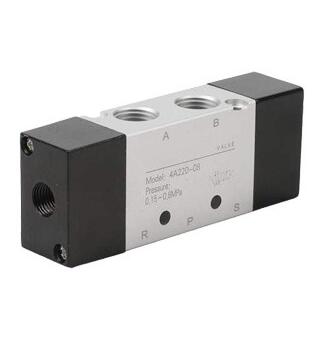

ENGELEC 4A2 series air control pulse valve pneumatic

Model: 4A210, 4A220, 4A230C, 4A230E, 4A230P

Media: Air

Action mode: Exterior control

Position: 5/2 port, 5/3 port

10: single coil double position

20: Double coil double position

30C: Double coil three position closed type

30E: Double coil three position exhaust type

30P: Double coil three position pressurized type

Working pressure: 0.15 -0.8Mpa

Proof pressure: 1Mpa

Working temperature: 0-60℃

Effective sectional area: 12mm2(Cv=0.67), 14mm2(Cv-0.78)

Valve port size: input=output=G1/4, exhaust port=G1/8, input=output=exhaust port=G1/8

Max operating frequency: 3 Cycle and 5 cycle per second
