AR BR A/B
ENGELEC
Availability: | |
---|---|

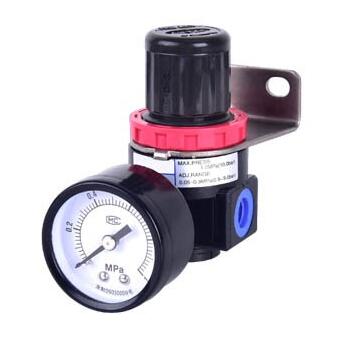

ENGELEC AR BR A/B series air regulator valve
Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR2500-02 | AR2500-03 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
Port Size | M5x0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 |
Pressure Gauge Port Size | M5x0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 |
Rated Flow(L/Min) | 100 | 550 | 550 | 2000 | 2000 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
Working Media | Compressed Air | |||||||||||
Proof Pressure | 1.5MPa | |||||||||||
Ambient Temperature | 5~60℃ | |||||||||||
Pressure Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||||||||
Bracket(one) | B120 | B220 | B320 | B420 | B640 | |||||||
Pressure Gauge | Y25-M5 | Y40-01 | Y50-02 | |||||||||
Body Material | Aluminum Alloy |
ENGELEC AR BR A/B series air regulator valve
Model | AR1000-M5 | AR2000-01 | AR2000-02 | AR2500-02 | AR2500-03 | AR3000-02 | AR3000-03 | AR4000-03 | AR4000-04 | AR4000-06 | AR5000-06 | AR5000-10 |
Port Size | M5x0.8 | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | G3/4 | G3/4 | G1 |
Pressure Gauge Port Size | M5x0.8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/8 | PT1/4 | PT1/4 | PT1/4 | PT1/4 | PT1/4 |
Rated Flow(L/Min) | 100 | 550 | 550 | 2000 | 2000 | 2500 | 2500 | 6000 | 6000 | 6000 | 8000 | 8000 |
Working Media | Compressed Air | |||||||||||
Proof Pressure | 1.5MPa | |||||||||||
Ambient Temperature | 5~60℃ | |||||||||||
Pressure Range | 0.05~0.7MPa | 0.05~0.85MPa | ||||||||||
Bracket(one) | B120 | B220 | B320 | B420 | B640 | |||||||
Pressure Gauge | Y25-M5 | Y40-01 | Y50-02 | |||||||||
Body Material | Aluminum Alloy |
