CJ2 CJ2B CDJ2B
ENGELEC
Availability: | |
---|---|

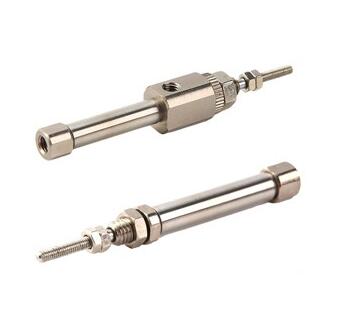

ENGELEC SMC Type CJ2 CJ2B CDJ2B Stainless Steel Mini Pneumatic Air Cylinder
Bore(mm) | 6 | 10 | 16 |
Working Medium | Air | ||
Motion Pattern | Double action/Single Action Extrusion type/Single Action Drawing-in Type | ||
Ensured Pressure Resistance | 1.05Mpa(10.5kgf/cm2) | ||
Max.pressure | 0.7Mpa(7.1kgf/cm2) | ||
Min.pressure | 0.25Mpa(2.5kgf/cm2) | 0.15Mpa(1.5kgf/cm2) | |
Operating Temperature Range | -10~+70℃ | ||
Operating Speed Range | 50~750mm/s | ||
Buffering | Both side Rubber buffer(Standard) | ||
Margin of Stroke Error(mm) | +1.0 | ||
0 mm | |||
Port size | M5×0.8 |
ENGELEC SMC Type CJ2 CJ2B CDJ2B Stainless Steel Mini Pneumatic Air Cylinder
Bore(mm) | 6 | 10 | 16 |
Working Medium | Air | ||
Motion Pattern | Double action/Single Action Extrusion type/Single Action Drawing-in Type | ||
Ensured Pressure Resistance | 1.05Mpa(10.5kgf/cm2) | ||
Max.pressure | 0.7Mpa(7.1kgf/cm2) | ||
Min.pressure | 0.25Mpa(2.5kgf/cm2) | 0.15Mpa(1.5kgf/cm2) | |
Operating Temperature Range | -10~+70℃ | ||
Operating Speed Range | 50~750mm/s | ||
Buffering | Both side Rubber buffer(Standard) | ||
Margin of Stroke Error(mm) | +1.0 | ||
0 mm | |||
Port size | M5×0.8 |
