ADVU
ENGELEC
Availability: | |
---|---|

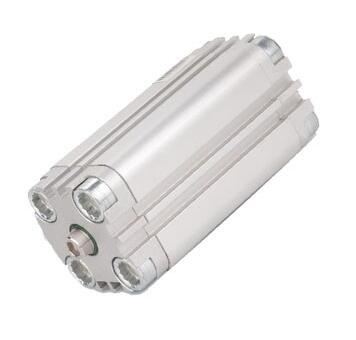

ENGELEC ADVU aluminum alloy compact cylinder
Bore size (mm) | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | |
Fluid | Air | ||||||||||
Action | ADVU | Double acting, Single/Double rod | |||||||||
AEVU/AEVUZ | Single acting, Single rod, Spring return/extend | ||||||||||
Minimum operating pressure | Double Acting | 0.12 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
Single Acting | 0.15 MPa | 0.13 MPa | 0.1 MPa | 0.08 MPa | 0.06 MPa | ||||||
Maximum operating pressure | 1.0 MPa | ||||||||||
Proof pressure | 1.5 MPa | ||||||||||
Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||||||
Cushion | Rubber bumper | ||||||||||
Lubrication | Non-lube | ||||||||||
Piston rod dia. | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 20 mm | 25 mm | ||||
Rod end thread | Female thread | M3x0.5 | M4x0.7 | M5x0.8 | M6x1.0 | M8x1.25 | M10x1.25 | M12x1.25 | |||
Cushion | Rubber bumper |
