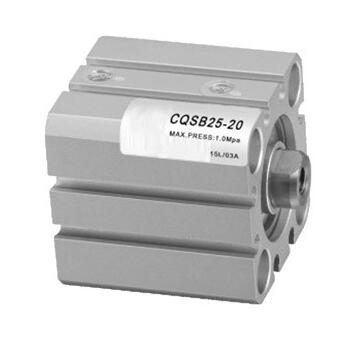

ENGELEC CQS series thin cylinder pneumatic
Selection of sensor switch:
Bore size: 12, 16, 20, 25
Sensor switch: D-A93
Cylinder bore size mm: 12, 16, 20, 25
Cylinder stroke mm: 5, 10, 15, 20, 25, 30, 35, 40, 45, 50
Acting mode: double acting
Working media: Air
Working pressure: 0.1-0.9Mpa(kgf/cm2)
Proof pressure: 1.35Mpa(13.5kg/cm2)
Temperature: -5~70℃
Prot size: M5
