SID
ENGELEC
Availability: | |
---|---|

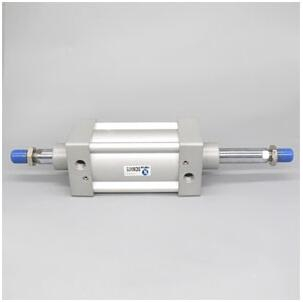

ENGELEC SID double acting piston rod adjustable stroke pneumatic cylinders
Bore diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Acting type | Double punch | |||||||||
Working medium | Air (filtered by 40μm filter element) | |||||||||
Fixed type | SI series | Basic type FA FB CA CB LB TC TC-M-1 TC--2 | ||||||||
SID series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
SIJ series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
Working pressure range | 0.1~0.9MPa(14~128Psi) | |||||||||
Guarantee pressure resistance | 1.5Mpa(213Psi) | |||||||||
Working temperature ℃ | ﹣5~70 | |||||||||
working speed range mm/s | SI series:50~800 Outer series:30﹣800 | |||||||||
Buffer type | Adjustable buffer | |||||||||
Buffer stroke mm | 24 | 32 | ||||||||
Connect tube size | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
ENGELEC SID double acting piston rod adjustable stroke pneumatic cylinders
Bore diameter(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Acting type | Double punch | |||||||||
Working medium | Air (filtered by 40μm filter element) | |||||||||
Fixed type | SI series | Basic type FA FB CA CB LB TC TC-M-1 TC--2 | ||||||||
SID series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
SIJ series | Basic type FA LB TC TC-M-1 TC-M-2 | |||||||||
Working pressure range | 0.1~0.9MPa(14~128Psi) | |||||||||
Guarantee pressure resistance | 1.5Mpa(213Psi) | |||||||||
Working temperature ℃ | ﹣5~70 | |||||||||
working speed range mm/s | SI series:50~800 Outer series:30﹣800 | |||||||||
Buffer type | Adjustable buffer | |||||||||
Buffer stroke mm | 24 | 32 | ||||||||
Connect tube size | PT1/8 | PT1/4 | PT3/8 | PT1/2 | PT3/4 |
