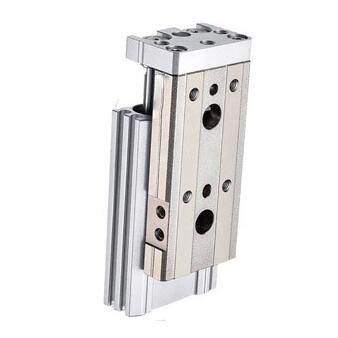

MXS HLS Linear Guide Pneumatic slide cylinder

ENGELEC MXS HLS Linear Guide Pneumatic slide cylinder
  • MXS HLS

  • ENGELEC

Availability:
MXS HLS Linear Guide Pneumatic slide cylinder

ENGELEC MXS HLS Linear Guide Pneumatic slide cylinder


MXS HLS Air compact Mini Precision Linear Guide Pneumatic Double Acting slide cylinder

Boresize 6 8 12 16 20 25
Port size M3X0.5 M5X0.8 1/8"
Fluid Air
Action Double   acting
Working pressure 0.15   to 0.7MPa
proof pressure 1.05MPa
Working temperature ~10~60   degree
Piston speed 50 to   500mm/s
Cushion Rubber   bumper(standard: with stroke adjuster) shock absorber(option)

ordering code MXS HLS pneumatic cylinder slide finger.jpg

4 drawing MXS HLS pneumatic cylinder slide finger.jpg

5 drawing MXS HLS pneumatic cylinder slide finger.jpg

6 drawing MXS HLS pneumatic cylinder slide finger.jpg
