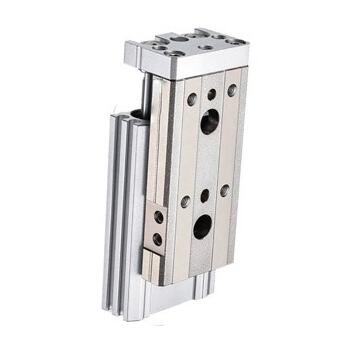

MXQ Linear Guide Pneumatic slide cylinder

ENGELEC MXQ Linear Guide Pneumatic slide cylinder

  • MXQ

  • ENGELEC

Availability:
Enquiry Add to Basket

MXQ Linear Guide Pneumatic slide cylinder

ENGELEC MXQ Air compact Mini Precision Linear Guide Pneumatic Double Acting slide cylinder


Bore   size (mm) 6 8 12 16 20 25
Piping port size M3   x 0.5 M5 x   0.8 Rc   1/8, NPT 1/8, G 1/8
Fluid Air
Action Double   acting
Operating pressure 0.15   to 0.7 MPa
Proof pressure 1.05   MPa
Ambient and fluid temperature -10   to 60°C
Piston speed 50 to   500 mm/s
Cushion Rubber   bumper (Standard, With stroke adjuster)
Shock absorber (Optional)
Auto switch (Optional) 2-wire,   3-wire
Stroke length tolerance +1~0   mm

ordering code MXQ pneumatic cylinder slide finger.jpg

4 drawing MXQ pneumatic cylinder slide finger.jpg

5 drawing MXQ pneumatic cylinder slide finger.jpg

6 dimension MXQ pneumatic cylinder slide finger.jpg
