MHS2 MHS3 MHS4
ENGELEC
Availability: | |
---|---|

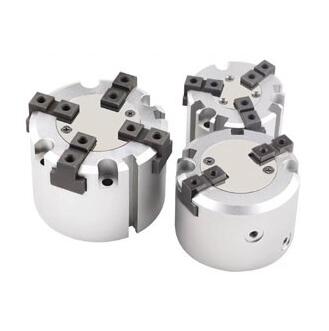

ENGELEC MHS2 MHS3 MHS4 mini clamp grippers pneumatic claw cylinder
Model | MHS2-16D | MHS2-20D | MHS2-25D | MHS2-32D | MHS2-40D | MHS2-50D | MHS2-63D | |
Bore Size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
Fluid | Air | |||||||
Operating pressure (MPa) | 0.2~0.6 | 0.1~0.6 | ||||||
Ambient and fluid temperature( ℃) | -10~60 | |||||||
Repeatability(mm) | ±0.01 | |||||||
Max.poe rating frequency(c.p.m) | 120 | 60 | ||||||
Lubrication | No required | |||||||
Action | Doubleb acting | |||||||
Effective gripping force(N) at | External grip | 21 | 37 | 63 | 111 | 177 | 280 | 502 |
Internal grip | 23 | 42 | 71 | 123 | 195 | 306 | 537 | |
Opening/Closing stroke(Both sides)(mm) | 4 | 4 | 6 | 8 | 8 | 12 | 16 |
ENGELEC MHS2 MHS3 MHS4 mini clamp grippers pneumatic claw cylinder
Model | MHS2-16D | MHS2-20D | MHS2-25D | MHS2-32D | MHS2-40D | MHS2-50D | MHS2-63D | |
Bore Size(mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
Fluid | Air | |||||||
Operating pressure (MPa) | 0.2~0.6 | 0.1~0.6 | ||||||
Ambient and fluid temperature( ℃) | -10~60 | |||||||
Repeatability(mm) | ±0.01 | |||||||
Max.poe rating frequency(c.p.m) | 120 | 60 | ||||||
Lubrication | No required | |||||||
Action | Doubleb acting | |||||||
Effective gripping force(N) at | External grip | 21 | 37 | 63 | 111 | 177 | 280 | 502 |
Internal grip | 23 | 42 | 71 | 123 | 195 | 306 | 537 | |
Opening/Closing stroke(Both sides)(mm) | 4 | 4 | 6 | 8 | 8 | 12 | 16 |
