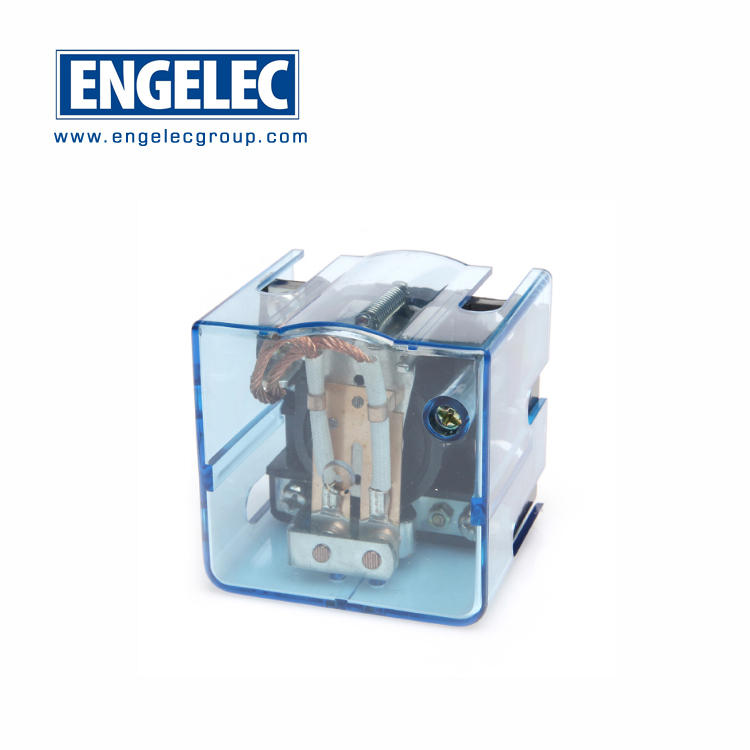

Power Relay JQX-62F

80A Contact Change-over Capacity
With Opening and Dust-proof Type
  • JQX-62F

  • ENGELEC

  • JQX-62F

Availability:

Power Relay JQX-62F


Features:

  • 80A Contact Change-over Capacity

  • With Opening and Dust-proof Type


Contact   Ratings 1Z, 1H, 1D
Contact   Resistance 100mΩ(1A 6VDC)
Contact   Material Silver AgCdO
Contact   capacity 80A 120A 250VAC/30VDC


Insulation Resistance: 1000MΩ, 500VDC

  • Dielectric Strength: BBC 1200V 1min; BOC 2500V 1min

  • Operate Time: 20ms/15ms

  • Ternimal Type: Terminal Mounting


Nonimal Coil Power: DC2.5W AC2.5VA

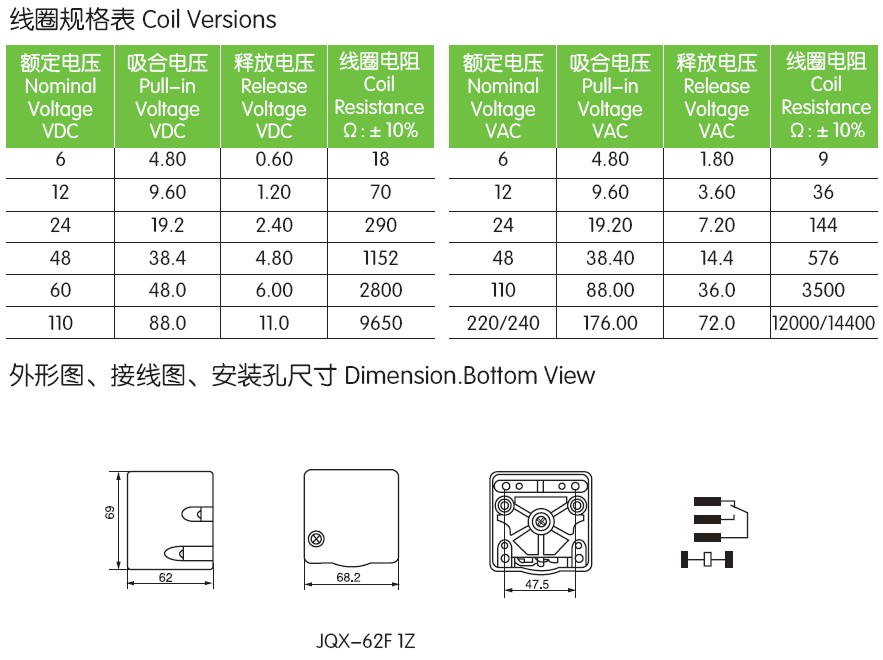

62F data sheet
