Power Relay JQX-60F

60A Contact Change-over Capacity
Swift Connection
With Opening and dust-proof Type
  • JQX-60F
  • ENGELEC
  • JQX-60F

Power Relay JQX-60F


Features:

  • 60A Contact Change-over Capacity

  • Swift Connection

  • With Opening and dust-proof Type


Contact   Ratings 1Z, 1H, 1D
Contact   Resistance 100mΩ(1A 6VDC)
Contact   Material Silver AgCdO
Contact   capacity 60A 250VAC/30VDC


Insulation Resistance: 1000MΩ, 500VDC

  • Dielectric Strength: BBC 1200V 1min; BOC 2500V 1min

  • Operate Time: 20ms/15ms

  • Ternimal Type: Screw


Nonimal Coil Power: DC2.5W AC2.5VA

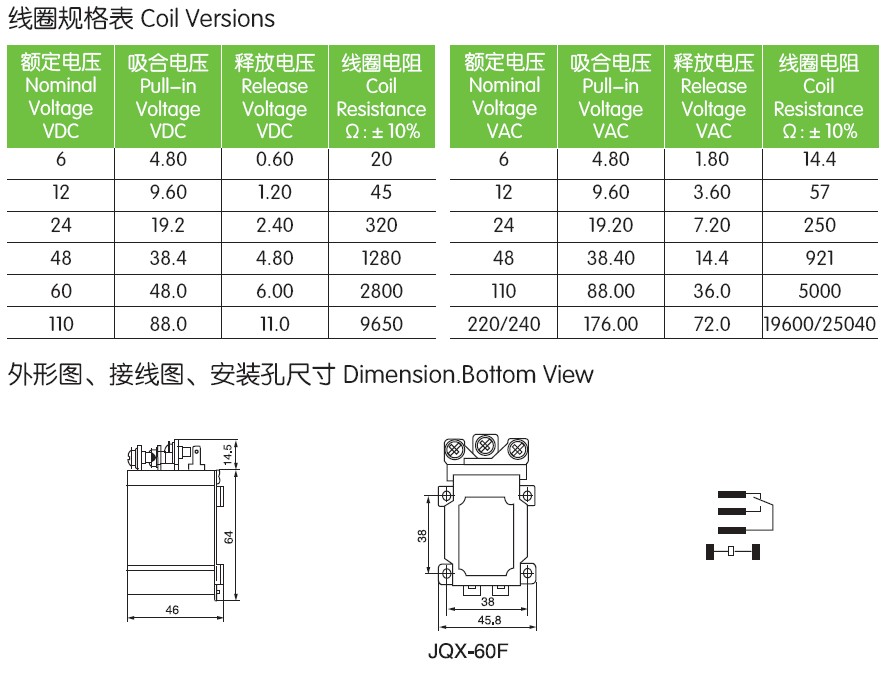

60F data sheet
