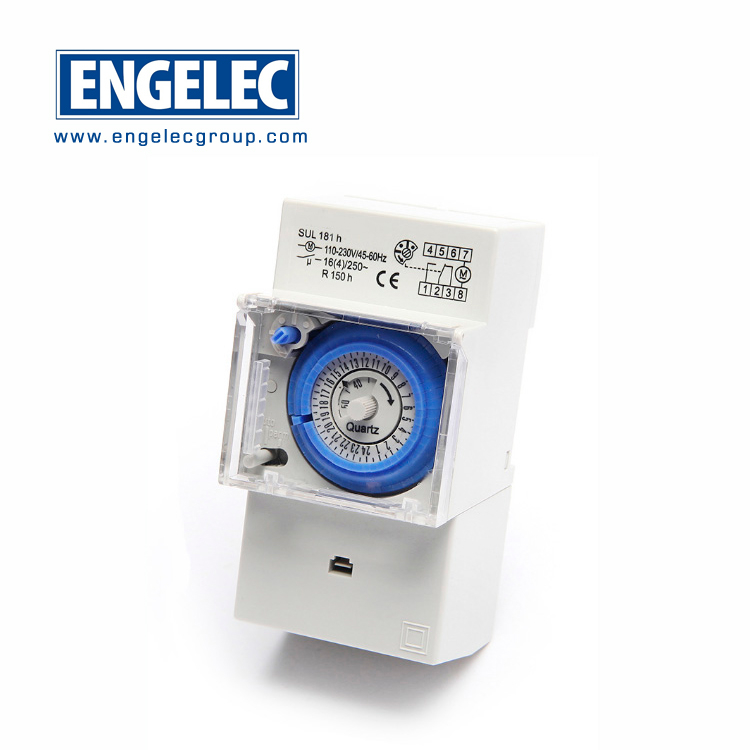

24 Hour Analog Timer SUL181h

The products according to the time set by the user, automatically turn on the turn off the variety of electrical equipment. Control object can lights, light boxes, neon signs, production equipment, agriculture, aquaculture, warehouse exhaust, dehumidifier automatically preheat optimal control products, such as radio and television equipment
  • SUL181h
  • ENGELEC
  • SUL181h

24 Hour Analog Timer SUL181h


Features:

     The products according to the time set by the user, automatically turn on the turn off the variety of electrical equipment. Control object can lights, light boxes, neon signs, production equipment, agriculture, aquaculture, warehouse exhaust, dehumidifier automatically preheat optimal control products, such as radio and television equipment


Item No. SUL181h SUL161h
Operation   voltage AC 110V/220V/240V 50/60Hz
Power   onsumption 2.5VA
Contact   capacity AC220V 16A
Contact   resistance less than 50M Ohm
Insulation   resistance more than 100M Ohm
Operating   temperature  -10~~+55 Celsius
Accuracy less than 2S/day 14 celsius
Cotnact   Capacity Lamp load 1000W; Resistive   load:16A/250VAC(COS=1) Inductive load:3A/250VAC(COS=0.6)
Working   reserve time 150 hours after recharging 24hours
Full timeing   range 24 hours
Storage   battery 150h(220V), without battery
Min. setting   unit 30minutes 30minutes
Setup times 30 minutes/time 48 times
Dimension 90*54*65mm
Weight 152g
Installing   mode Din rail mounting


181h-组合

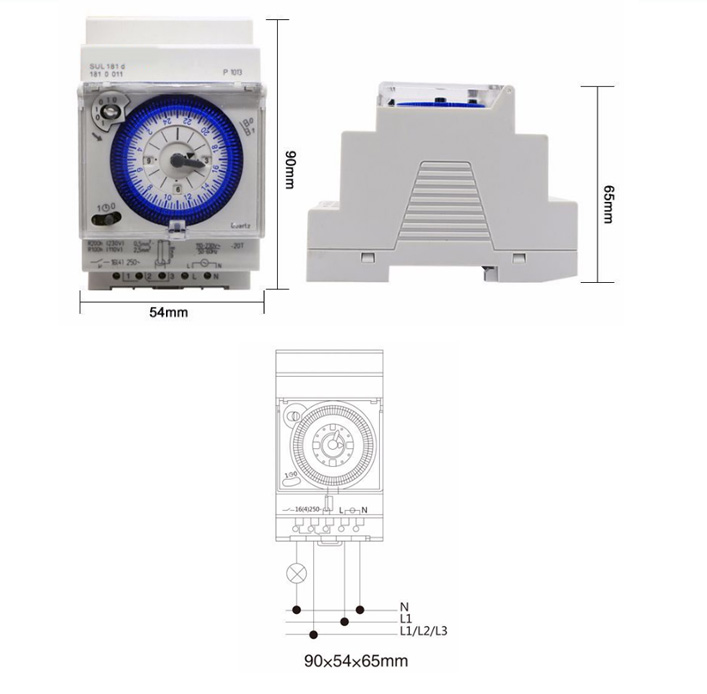

尺寸,接线


应用
