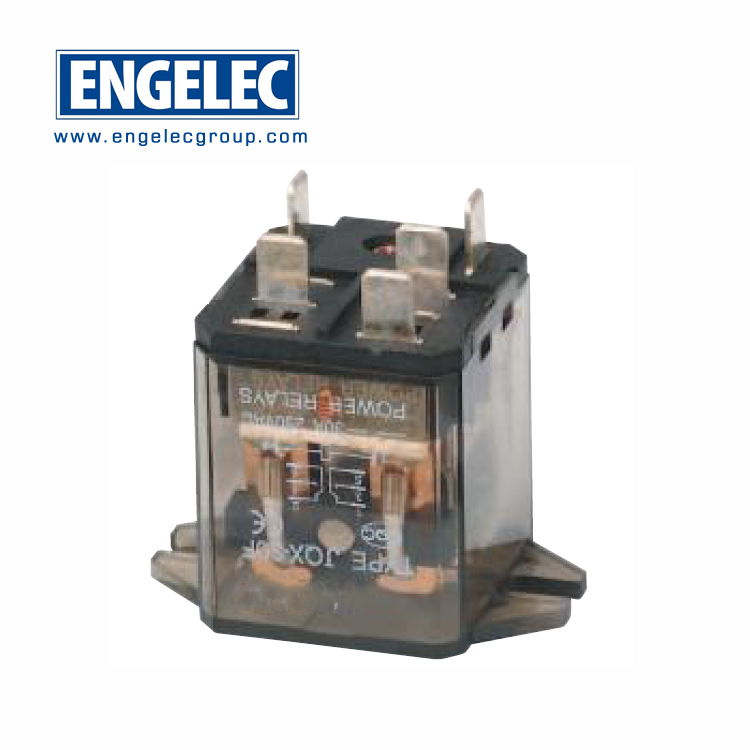

Power Relay JQX-30F

30 A Contact Change-over Capacity
With Opening and Dust-Proof Type
  • JQX-30F


  • JQX-30F


Power Relay JQX-30F


  • 30 A Contact Change-over Capacity

  • With Opening and Dust-Proof Type

Contact Ratings: 1Z 1H, 1D/2Z, 2H, 2D

  • Contac Resistance: 100mΩ (1A 5VDC)

  • Contact Material: Silver AgCdO

  • Contact capacity: 30A 250VAC/28VDC

Insulation Resistance: 1000MΩ, 500VDC

  • Dielectric Strength: BBC 1200V 1min; BOC 2500V 1min

  • Operate Time: 20ms/15ms

  • Ternimal Type: Terminal

Nonimal Coil Power: DC2.5W AC4.0VA

30F data sheet
