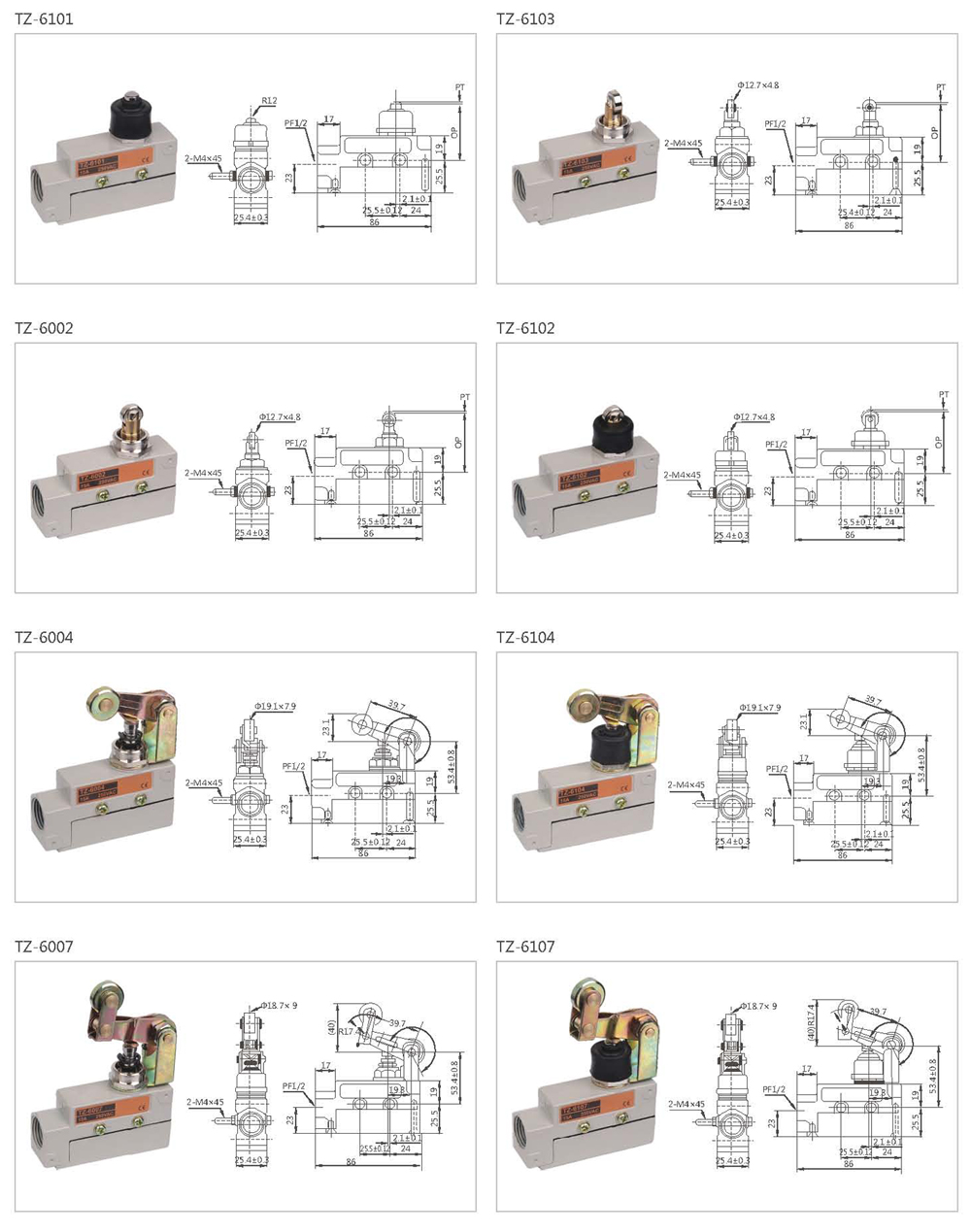

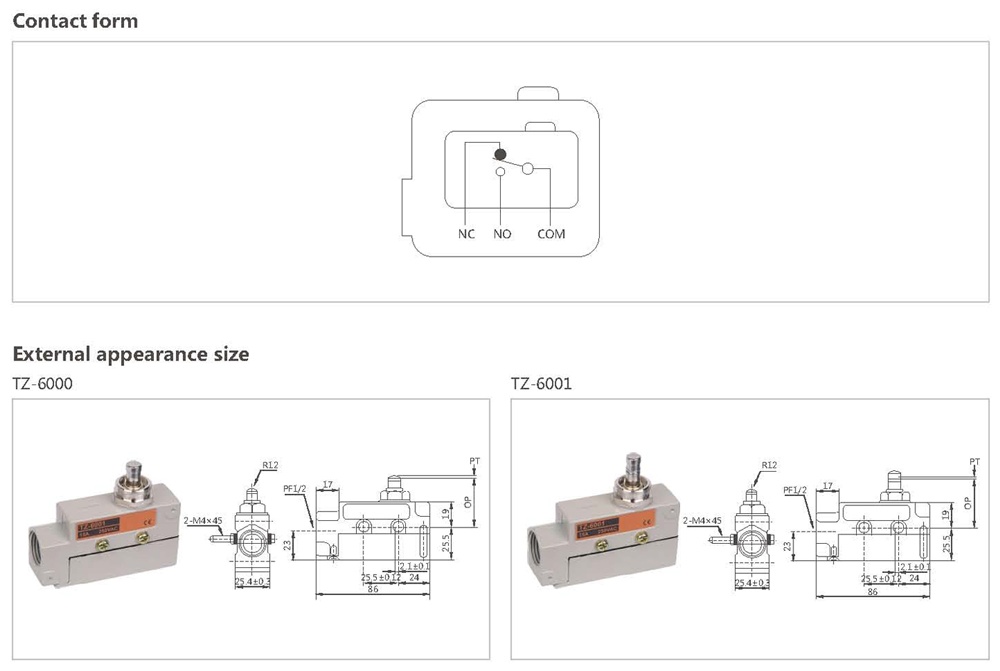

Limit Switch, TZ Series

  • TZ

  • TZ


Limit Switch, TZ Series

Main Specification:

Item Value
Protection degree IEC   specification: IP65
Life Mechanical One million   times
Eleatrical One hundred   thousand times
Operation speed 0.01mm-0.5m/s
Operation   frequency Mechanical 120 times/m
Eleatrical 20 times/m
Insulation resistance 100MΩ (DC 500V)
Contact resistance Under 15MΩ   (Initial value)

Between the   terminals of same pole AC 1000V
With stand voltage (50/60Hz 1min) Between charged   metal parts AC 1500V

Between   non-charged metal parts of each terminal AC 1500V
Vibration Misoperation 10-55Hz   amplitude 1.5mm
Impact Durable 1000m/s² above   (about 100G)
Misoperation 200m/s² above   (about 20G)
Sudden current NC max 30A
NO max 15A
Ambient operating temperature -10~+80℃
Humidity ≤85%
