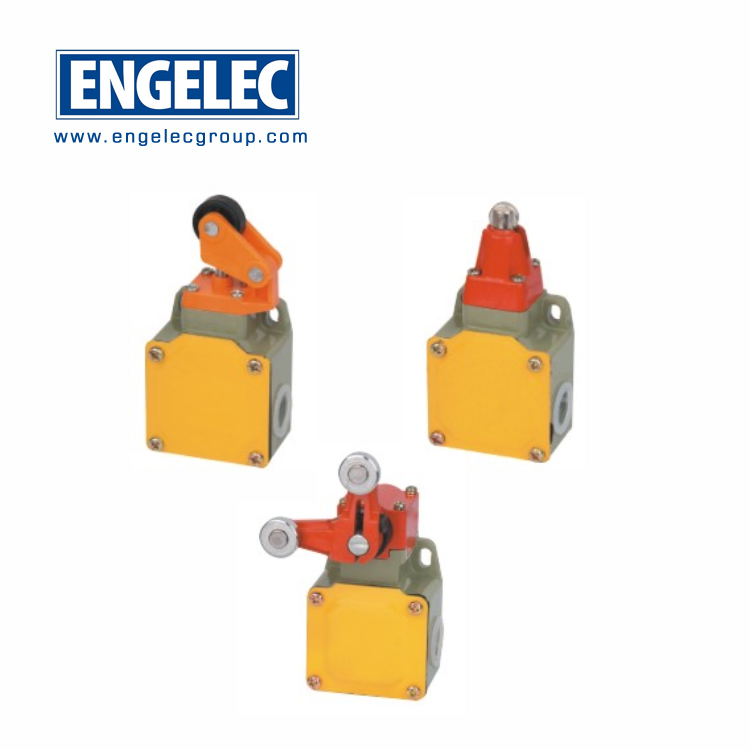

Limit Switch, 3SE3 Series

The product is to service at such control circuit as AC50-60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
  • 3SE3
  • 3SE3

Limit Switch, 3SE3 Series


Characteristics / Application:

     The product is to service at such control circuit as AC50-60Hz, voltage of 380VAC or 220VDC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.

The nominal service conditions include an ambient temperature of -25℃+40℃, an ambient relative humidity of 90%, and altitude of 2000m and protection degree of IP65. It complies with the standard of IEC337-1 and GB14048.5-2001.


Main Technology Data:


Operation system Characteristic
B type Direct action, automatic reset
C type Direct action, automatic reset, with cushion
D type Direct action, with roller, automatic reset, with cushion
E type Angle lever, with roller, automatic reset
F type Angle lever, with roller, automatic reset
G type Single rocker, single rotary wheel, automatic reset, arbitraty angle of installation of rocker
U type Single rocker with length adjustable, on wheel automatic reset
W type Length of   plastic bar adjustable, automatic reset
T type Fork-shape bar,  two wheel, can't automatic reset
R type Direction type,  automatic reset


Code name for protection enclosure mode:


3ES3-120 Vertical type, a outgoing hole at the bottom
3ES3-100 Horizontal type, there is respectively
a outgoing hole at the bottom and two sides.

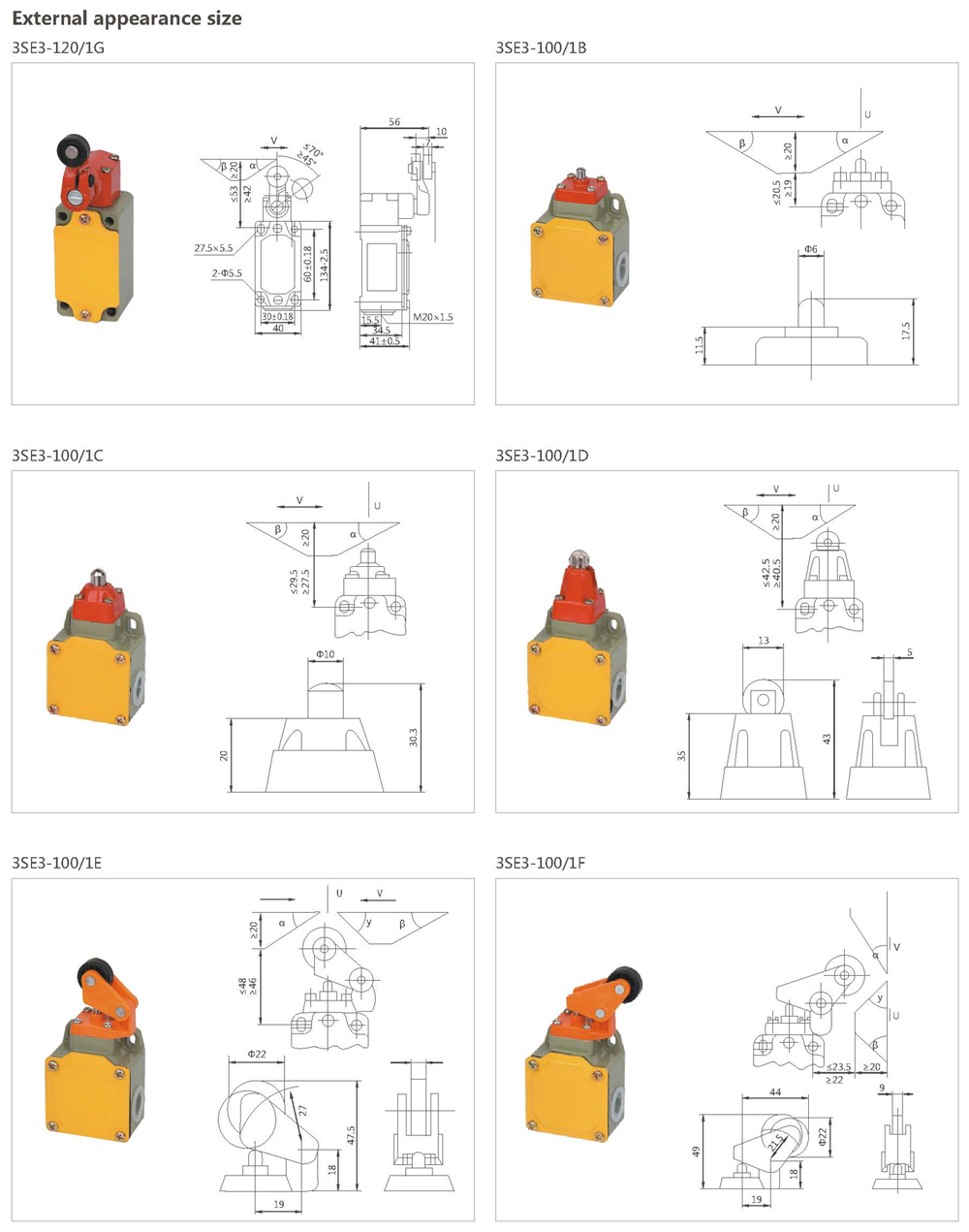

3SE3-1

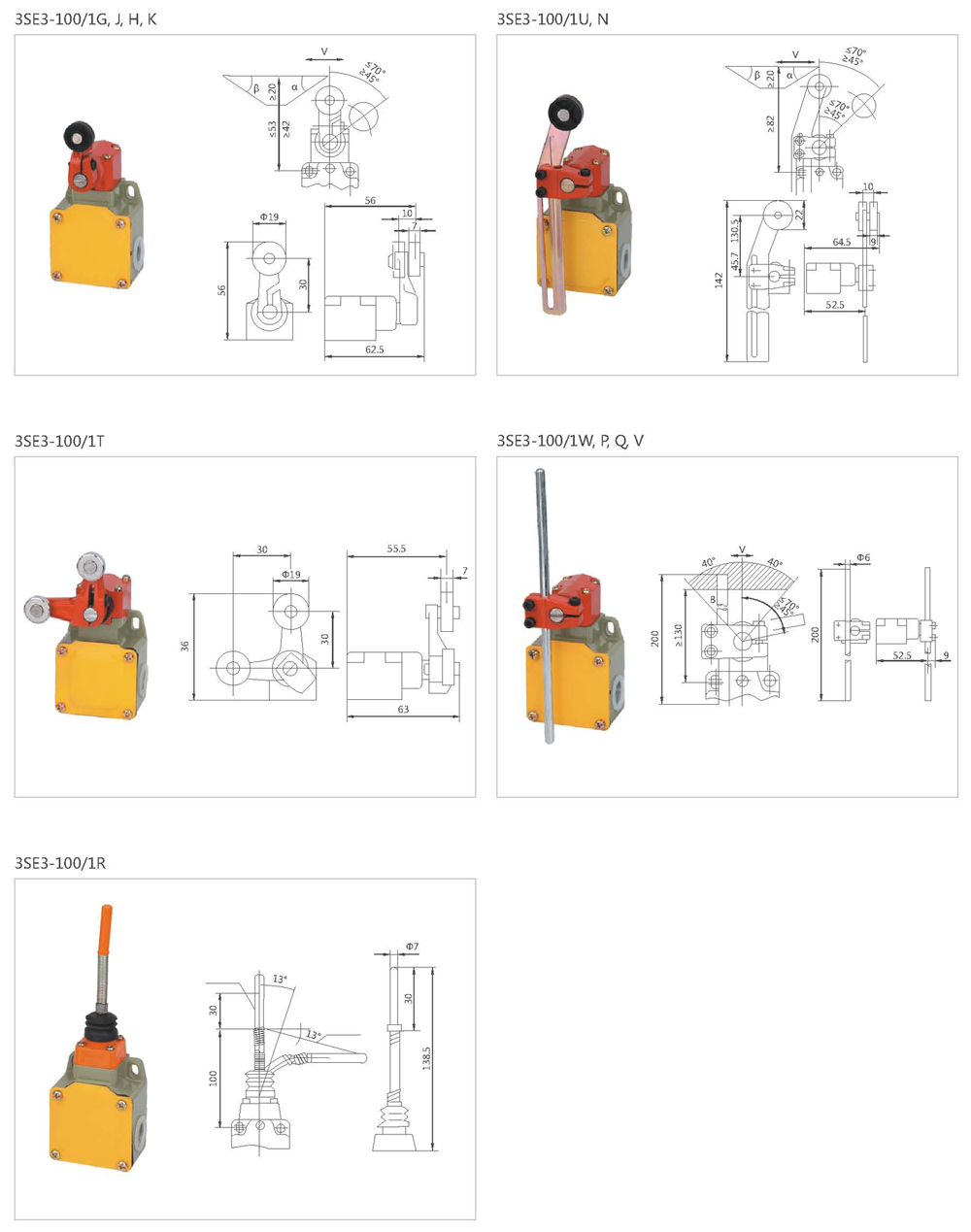

3SE3-2
