Limit Switch, HL Series
Characteristics / Application:
Protection degree | IP67 | |
Life | Mechanical | Ten million times above |
Electrical | 500000 above | |
Operation speed | 5mm~0.5m/s | |
Operation frequency | Mechanical | 120 times/m |
Electrical | 30 times/m | |
Insulation resistance | 100MΩ DC500V | |
Contact resistance | Under 25mΩ (Initial value) | |
With stand voltage (50/60Hz 1min) | Between the terminals of same pole | AC 1000V |
Between charged metal parts | AC 1500V | |
Between non-charged metal parts of each terminal | AC 1500V 10~55Hz (Amplitude 1.5mm) | |
Vibration | AC 250V 5A | |
Load | AC 380V 5A | |
DC 125V 5A | ||
DC 250V 5A |

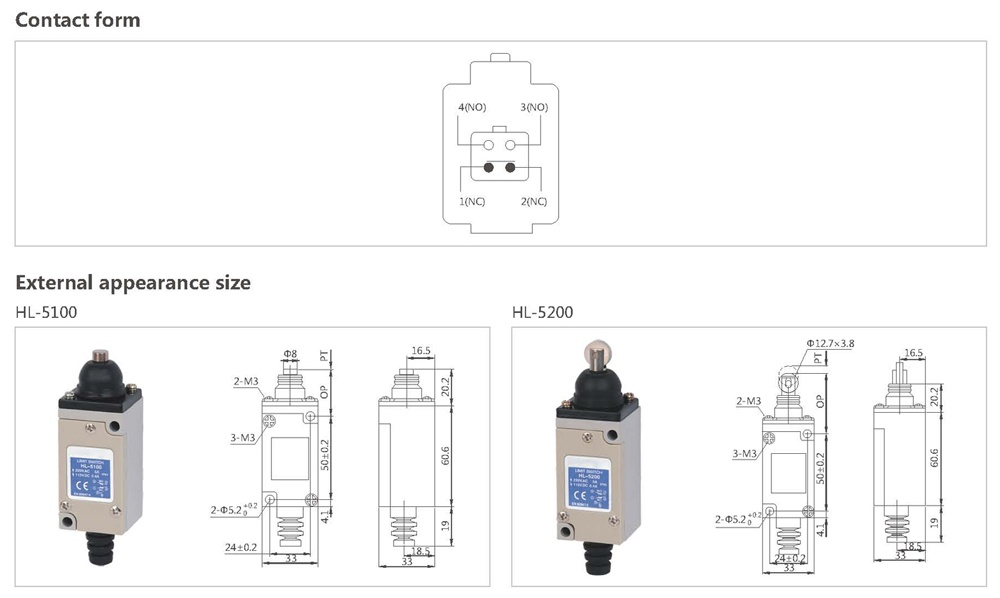

Operation Speciality Mode | HL-5000 | HL-5030 | HL-5050 | HL-5100 | HL-5200 | HL-5300 |
OF(max) | 750g | 750g | 750g | 900g | 900g | 150g |
RF (min) | 100g | 100g | 100g | 150g | 150g | - |
PT (max) | 20° | 20° | 20° | 1.5mm° | 1.5mm° | 3mm |
OT (min) | 50° | 50° | 50° | 4mm | 4mm | - |
MD (max) | 12° | 12° | 12° | 1mm | 1mm | - |
OP | - | - | - | 30±0.8mm | 30±0.8mm | - |
