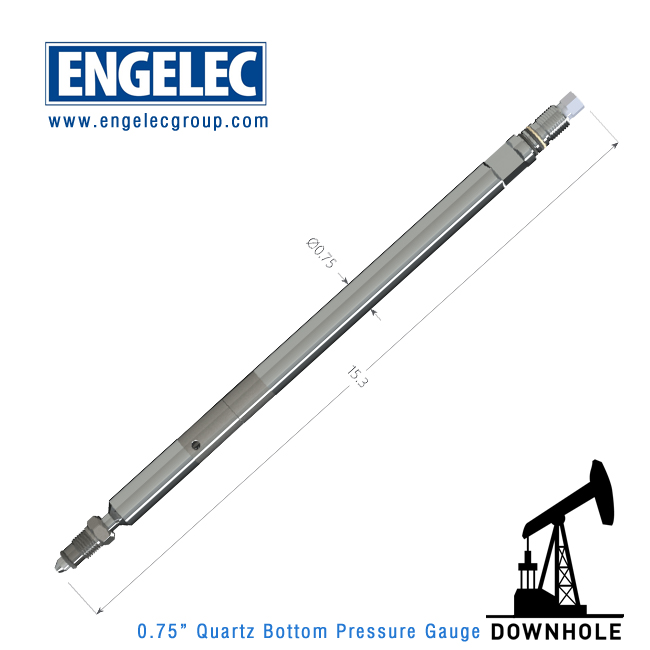

0.75" Multi-Gauge Permanent Quartz Bottom Pressure Tool

The ENGELEC downhole Multi-Gauge Quartz Bottom Pressure Tool can be used on its own or at the bottom of a multi-gauge pressure system. Our Multi-Gauge Quartz Bottom Pressure Tool is easy to install and produces high quality reservoir data in real time. It’s fully welded construction, dual protection metal to metal seal design, and hermetically sealed electronics make it a very reliable product. This is the final gauge in a multi-gauge system. Alternatively, this gauge can be used on it’s own as a single gauge in a single gauge system.
  • PPBQT
  • ENGELEC
  • PPBQT
  • 0.75"
Gauge:

Permanent downhole 0.75" Quartz Multi-gauge Bottom or Single Gauge

Application

ENGELEC Multi-Gauge Quartz Bottom Pressure Tool can be used on its own or at the bottom of a multi-gauge pressure system.

Features
  • 8 Gauges on a Single Conductor

  • No WYE Needed

  • 0.75" Diameter

  • Corrosion Resistant - NACE MR0175

    Benefits

    The Multi-Gauge Quartz Bottom Pressure Tool is easy to install and produces high quality reservoir data in real time. It’s fully welded construction, dual protection metal to metal seal design, and hermetically sealed electronics make it a very reliable product. This is the final gauge in a multi-gauge system. Alternatively, this gauge can be used on it’s own as a single gauge in a single gauge system.

    Quick Specs
    Name OD Maximum Temperature Maximum Pressure
    Permanent Downhole Quartz Multi-gauge Bottom  0.75" 150°C 25,000 psi
