1.25" Permanent Dual Piezo Middle Pressure Gauge

The ENGELEC downhole Multi-Gauge Piezo Bottom Pressure Tool can be used on its own or at the bottom of a multi-gauge pressure system. Our Multi-Gauge Piezo Bottom Pressure Tool is easy to install and produces high quality reservoir data in real time. It’s fully welded construction, dual protection metal to metal seal design, and hermetically sealed electronics make it a very reliable product. This is the final gauge in a multi-gauge system. Alternatively, this gauge can be used on it’s own as a single gauge in a single gauge system.

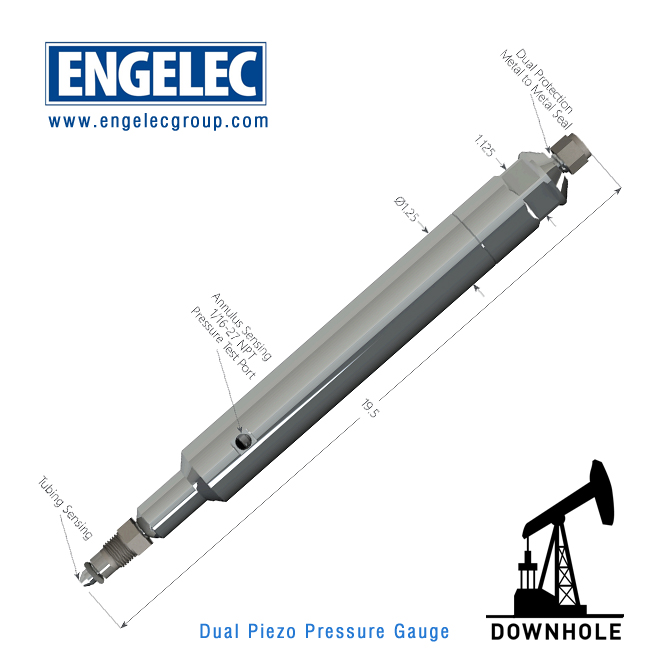

Permanent Downhole 1.25" Dual Piezo Pressure Gauge

Permanent downhole_Gauges_Dual Piezo Gauge Measurements


ENGELEC Dual Piezo Pressure Gauge for PCP monitoring delivers pressure, temperature and vibration (optional) readings for both the pump discharge (tubing sensing) and intake (annulus sensing).

  • High Accuracy and Resolution – Reservoir Data

  • Fully Welded Construction – No O-Rings

  • Hermetically Sealed

  • Dual Protection Metal to Metal Seal Design

  • Corrosion Resistant NACE MR0175

  • 1 Second Sampling

  • Dual Axis Vibration Sensor Option - Capable Of Monitoring Pump Wear


    Fully welded construction, dual protection metal to metal seal design, and hermetically sealed electronics.

    Quick Specs

    Name OD Maximum Temperature Maximum Pressure
    Dual Piezo Pressure Gauge  1.25" 135°C 15,000 psi
