Round Downhole Cable for Oil Well Sensor

The ENGELEC downhole cable for sensor application. It is designed to perform in the well and withstand elevated temperatures, high pressure and corrosive environments. It is used in conjunction and connecting with a big range of permanently installed electronic downhole pressure sensor,temperature sensor or other electronic equipment. The downhole cable is targeted to< 150°C offshore and land-based wells where ruggedness is essential.
Size:

Round Tube Encapsulated Downhole Sensor Cables

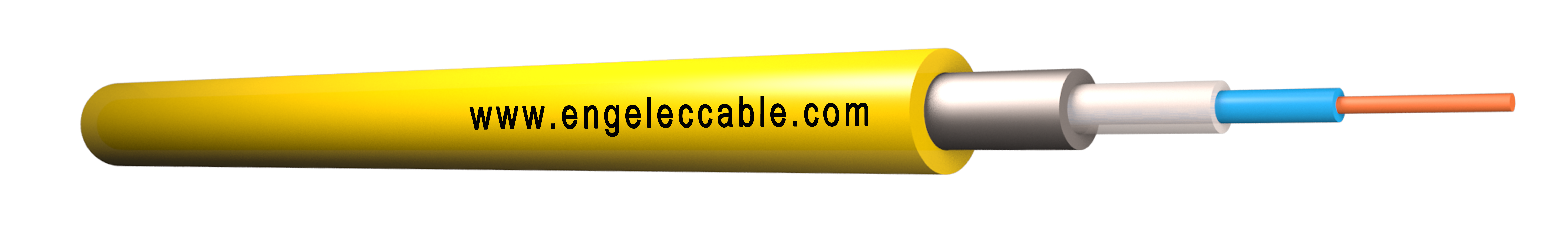

Downhole sensor cable round横字

Applications


The ENGELEC downhole cable for sensor application. It is designed to perform in the well and withstand elevated temperatures, high pressure and corrosive environments. It is used in conjunction and connecting with a big range of permanently installed electronic downhole pressure sensor,temperature sensor or other electronic equipment. The downhole cable is targeted to < 150°C offshore and land-based wells where ruggedness is essential.

Construction

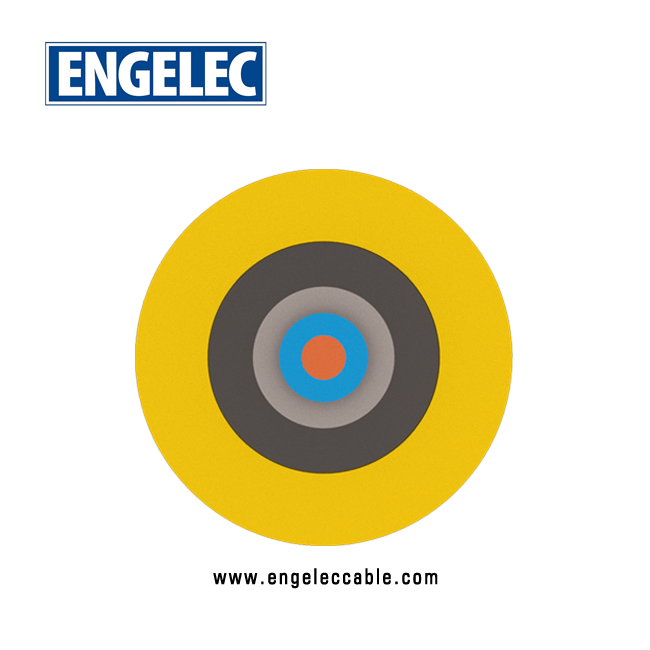

downhole cable圆底注释

Conductor

Annealed bare copper or tinned copper, sizes: 16 AWG and 18AWG, Solid or  multi-stranded (Class 2) to BS 6360

Insulation

ETFE (ethylene-tetra-fluoro-ethylene) , wall thickness 0.03 inch (0.76 mm)

with blue color or upon customizing

Filler

Expanded polypropylene, with nature color or upon customizing

Tubing

Seamless stainless SS 316L or Alloy 825,Diameter 0.25 inch ( 6.35mm)

Wall thickness 0.028 (0.71mm), 0.035 (0.89mm), 0.049(1.24mm) are optional.

Outer encapsulation

Material Nylon, Polypropylene, ETFE are optional,

Round shape : Φ 11mm

Encapsulation Color




Mechanical and Electrical Properties

Tube Wall Thickness, inch (mm)

0.28(0.76)

0.035 (0.89)

0.049(1.24)

Tube Material

SS 316L

Alloy 825

SS 316L

Alloy 825

Alloy 825

Continuous maximum operating pressure, psi (bar)

11500(793)

13500(931)

17500(1206)

18000(1241)

26000(1793)

Collapse pressure, psi (bar)

17500(1206)

20000(1379)

26000(1793)

27000(1861)

39000(2689)

Armor DC resistance, 68°F (20°C), Ohms/kft. (Ohms/km)

17.9 (58.8)

27.3 (89.6)

15 (49.22)

22.5 (73.82)

17.2 (56.43)

Capacitance, conductor to tube, pf/ft. (pf/m)

23.3 (76.45)

23 (75.46)

25 (82.03)

30 (98.43)

36 (118.12)

Conductor DC resistance, 68°F(20°C), Ohms/kft.(Ohms/km)

16 AWG:  4.45 (14.6) ;    18AWG: 7.07 (23.2)

Insulation resistance conductor to tube at 68°F (20°C)

MOhms/kft.(MOhms/km)

884 (2900)

Rated voltage

1000VDC

Max operating temperature

Nylon : 275˚F (135˚C) ;  Polypropylene : 302˚F (150˚C) ;  ETFE : 302˚F (150˚C)
