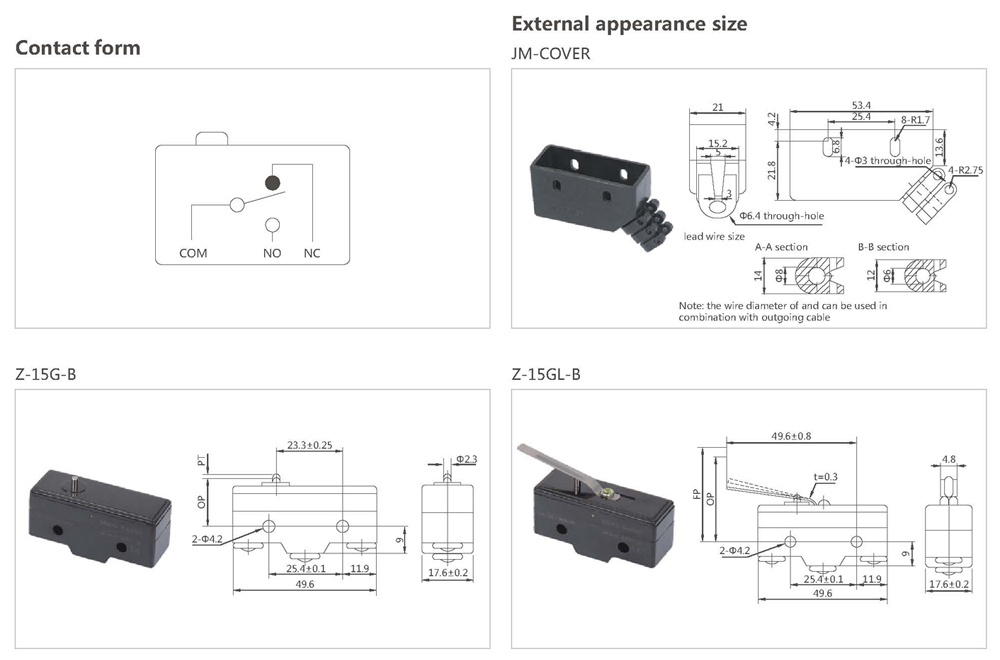

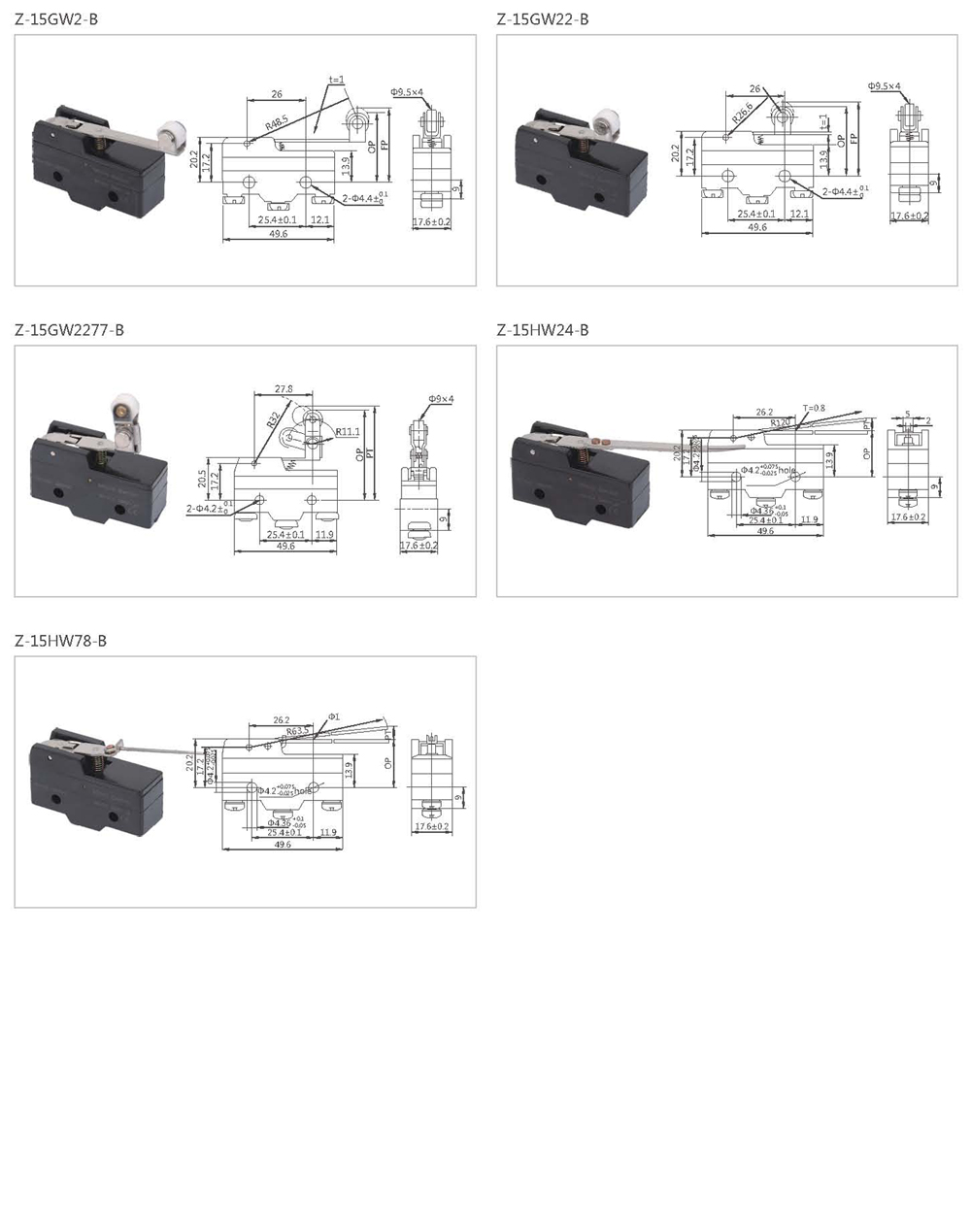

Micro Switch, Z15 Series
Main Specification:
Item | Value |
Operation speed | 0.1mm to 1m/Sec |
Action frequency | Mechanically: 240 times/minute |
Insulation resistance | Electically: 20 times/Minute |
Contact resistance | 100mΩ above(at 500VDC) |
Under 20mΩ(initial) | |
Bearing voltage | Non-contact end: 1000VAC, 50/60Hz for one minute Current parts and noncurrent parts and end and connect opsition: 2000VAC, 50/60Hz for one minute |
Vibration | Machine: 400m/Sec² (about 40G's) 1.5mm 10 to 55Hz: 1.5mm pairs swing action |
Ambient operating temperature | -25℃ to 80℃ |
Humidity | Below 85%RH |
Serve life | Mechanicallly: 20000000 times above (at rated ot) Electrically: 500000 times above |
