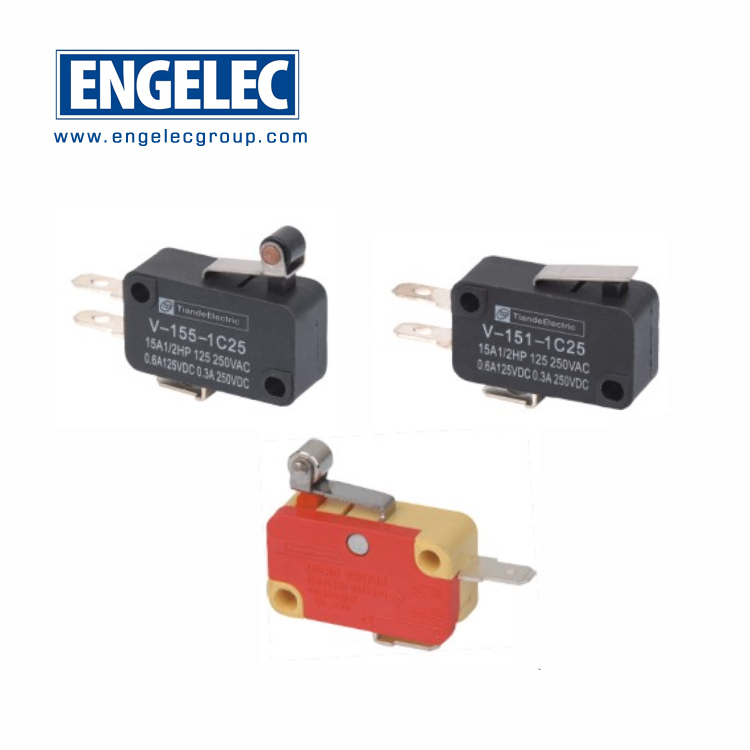

Micro Switch, V15 Series
Main Specification:
Operation speed | 0.1mm to 1m/Sec |
Action frequency | Mechanically: 600 times/minute Electically: 60 times/Minute |
Contact resistance | Under 15mΩ(initial) |
Insulation resistance | 100mΩ above(at 500VDC) |
Bearing voltage | Non-contact end: 1000VAC, 50/60Hz for one minute Current parts and noncurrent parts and end and connect opsition: 1500VAC, 50/60Hz for one minute |
Vibration | 1.5mm 10 to 55Hz: 1.5mm pairs swing action |
Hitting | Machine: 400m/Sec² (about 40G's) Action: 100m/Sec² (about 10G's) |
Ambient temperature | -25℃ to 80℃ |
Humidity | Below 85%RH |
Serve life | Mechanicallly: 5000000 times above (at rated ot) Electrically: 100000 times above |
Protection degree | IEC specification: IP65 |
