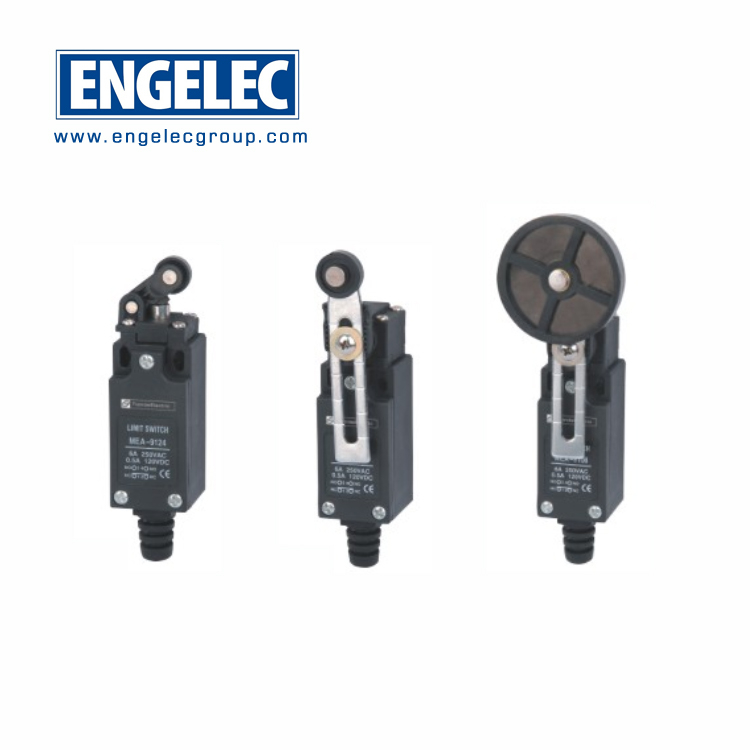

Limit Switch, MEA Series
Characteristics / Application:
| Item | Value | |
| Total plastic enclosure, light weight switch | ||

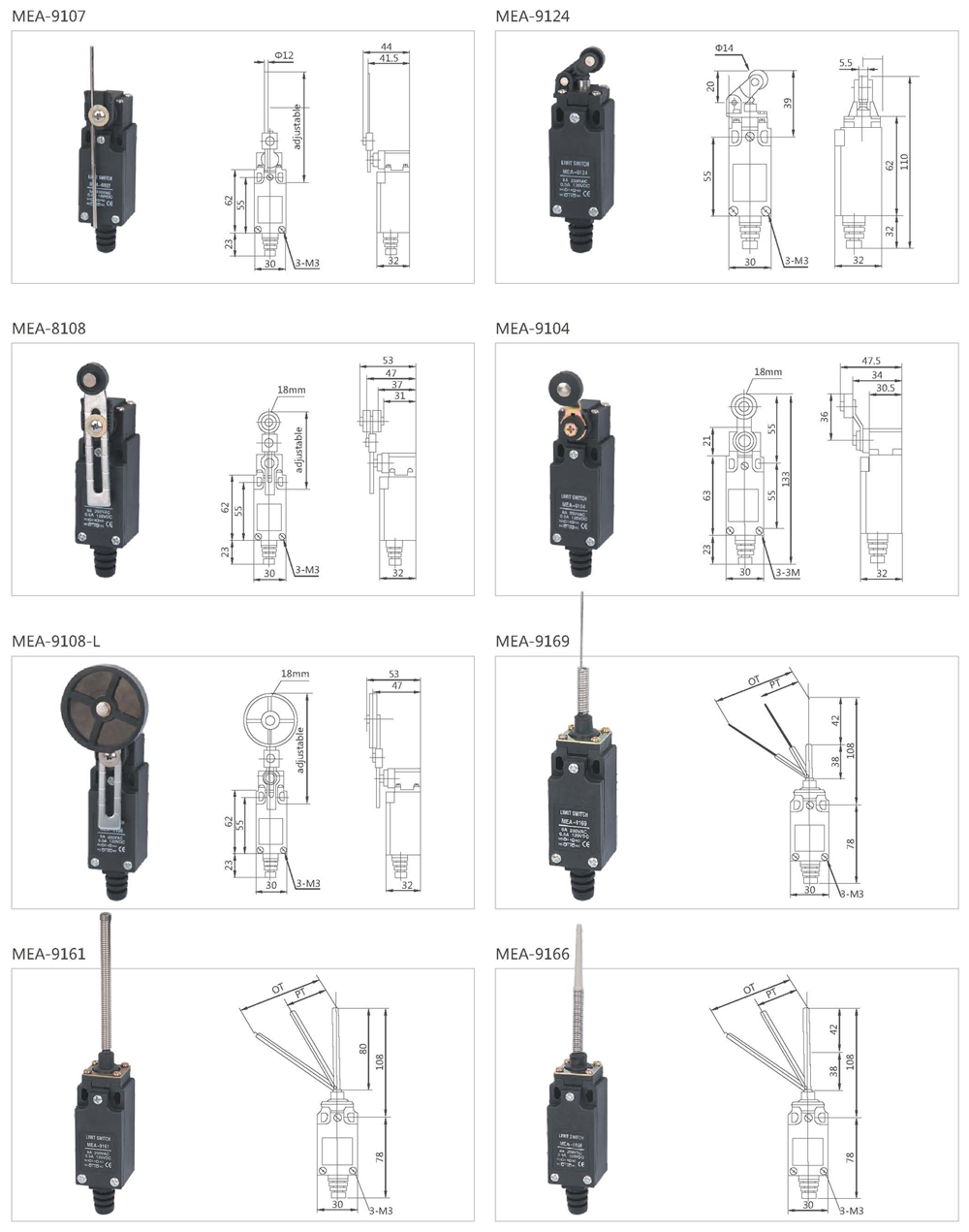

| Wide choice of heads and actuators | ||
| Captive cover screws | ||
| Dustproof, oil-tight, water-resitant | ||

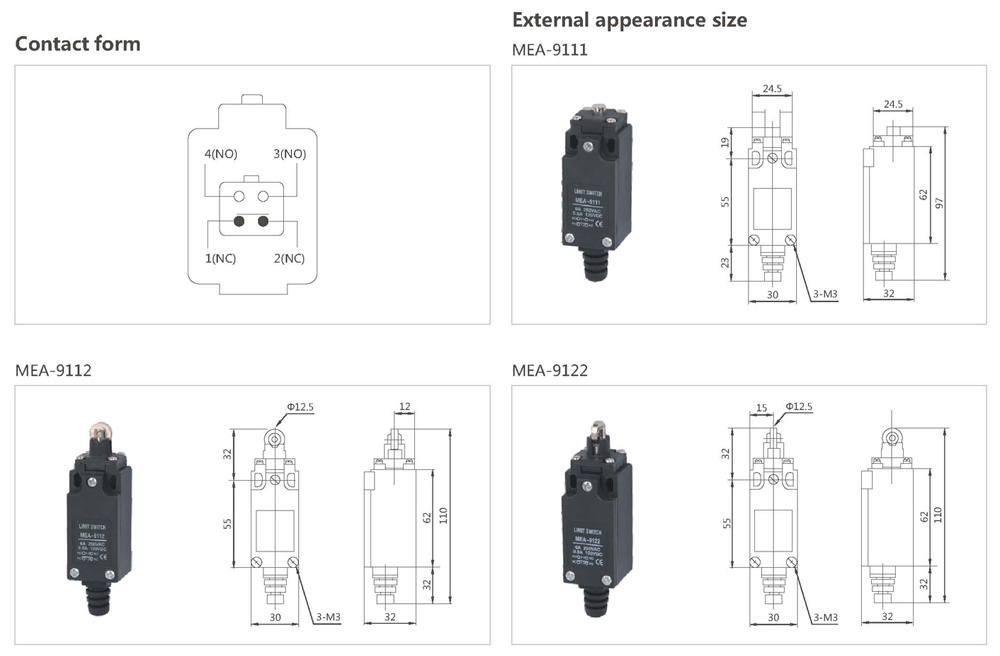

| Double contacts | NO/NC contacts | |
| Protection degree | IP65 | |
| Working range | 6A 125 or 250VAC | |
| Insulation resistance | 100MΩ max at 500VDC | |
| Max.operating freq. | Mechanical | 120 times/m |
| Electrical | 30 times/m | |
| Life test-electrical mechanical | Mechanical | Above 10000000 times |
| Electrical | Above 500000 times | |
| Ambient openating temperature | -25℃~+70℃ | |
