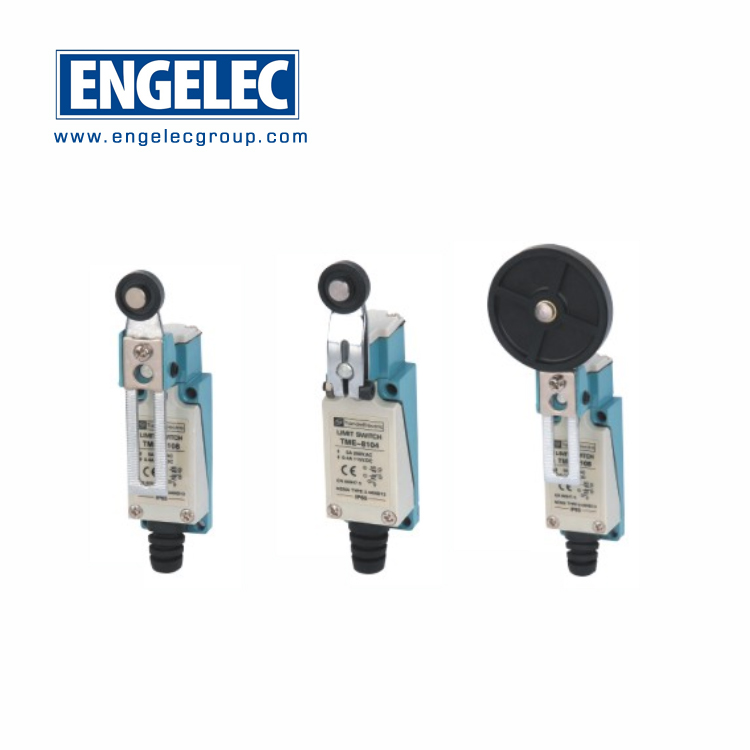

Limit Switch, ME Series
Characteristics / Application:
Item | Value | ||
Characteristics | |||
Contact arrnagement | Form Z | ||
Initial contact resistance, max 15mΩ | By voltage drop 6 to 8V DC at rated current | ||
Contact material | |||
Initial insulation resistance at 500VDC | Min 100mΩ | ||
1000Vrms for 1min between non-consective terminals | |||
Initial breakdown voltage | 2000Vrms for 1min between dead metat parts and each terminals 2000Vrms for 1min between ground and each terminal | ||
Shock resistance max. | In the free poition | 10G | |
In the operating poition | 30G | ||
Vbration resistance | Standard type | Max. 55Hz | |
Mechanical: 107 (at 120 cpm) | |||
Life (min. operations) | Eleatrical: | 3×105 at rated resistive load AC 5A | |
3×106 Magnetic contactor 200V AC load | |||
Ambient temperature | -20 to +60℃, -4 to +140℃ F | ||
Ambient humidity | <95% | ||
Protective constuction | IEC IP65 |
Specification:
Load Contact voltage | Resisting load | Induced load |
AC 125V | 5A | 3A |
AC 250V | 5A | 2A |
DC 115V | 0.4A | 0.1A |
Operating characteristics:

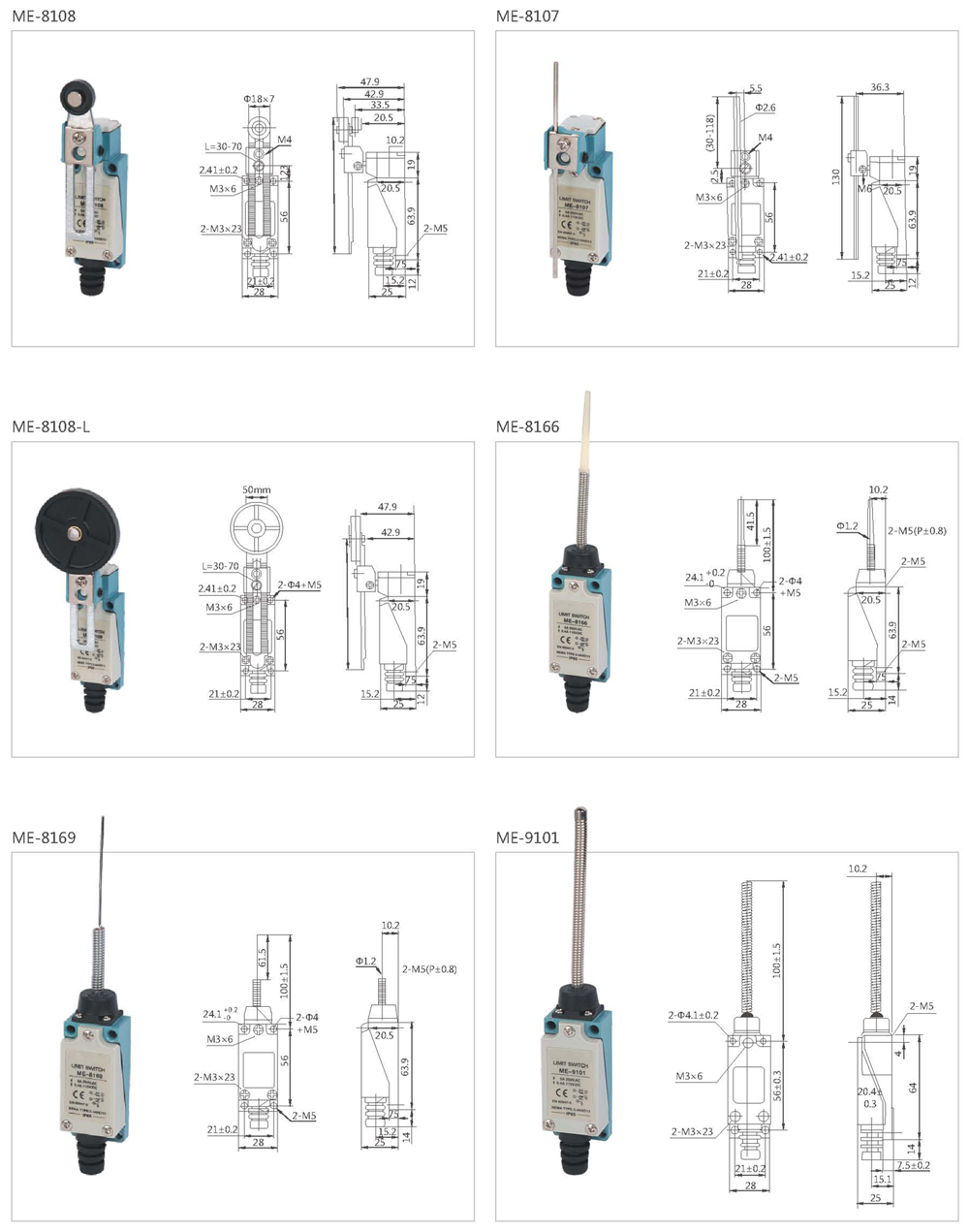

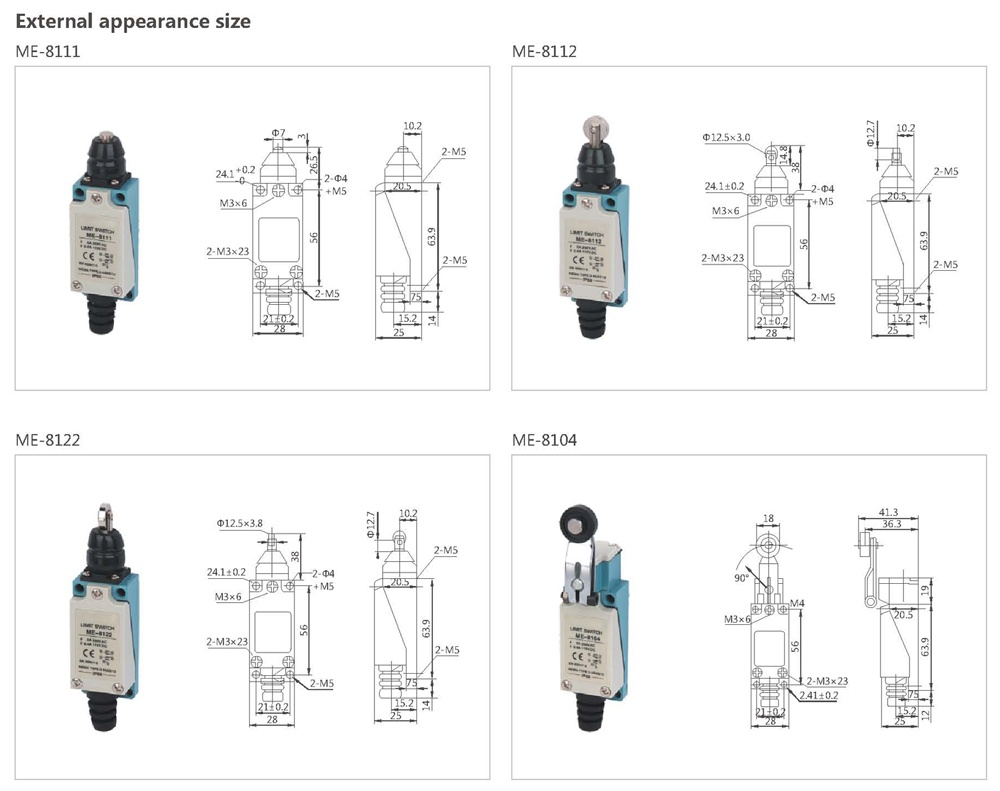

Mode Operation speciality | ME-8111 | ME-8112 ME-8122 | ME-8166 ME-9101 | ME-8104 | ME-8108 ME-8108-L | ME-8107 |
OF (max) | 900g | 900g | 150g | 750g | 750g | 750g |
RF (min) | 150g | 150g | - | 100g | 100g | 100g |
PT (max) | 1.5mm° | 1.5mm° | 30mm | 20° | 20° | 20° |
OT (min) | 4mm | 4mm | - | 50° | 50° | 50° |
MD (max) | 1mm | 1mm | - | 12° | 12° | 12° |
OP | 26±0.8mm | 37±0.8mm | - |
