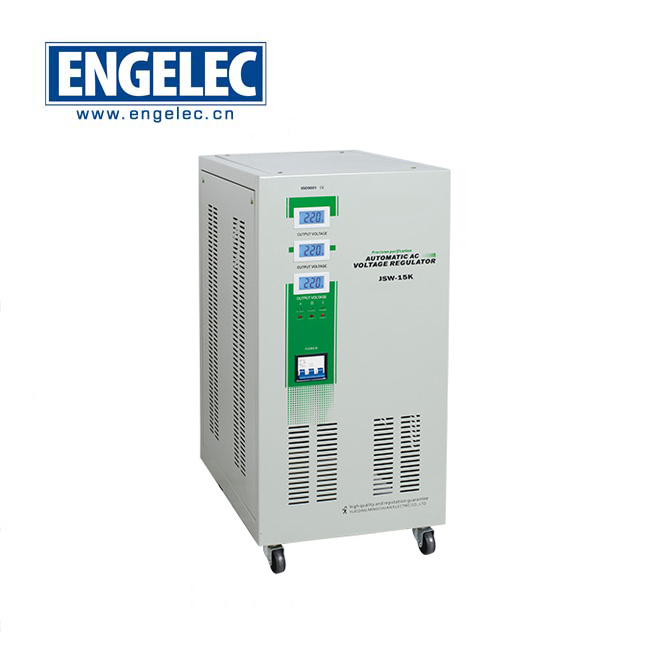

JJW /JSW Precise Purify Ac Voltage Stabilizer
General
1, the ambient temperature: - 5 ℃ ~ + 45℃ degrees Celsius
2, altitude: not more than 1000 meters
3, relative humidity: 90% or less
4, the installation place should be no impact stabilizer of the insulation gas, steam, chemical deposition, dust, dirt and gas explosion and corrosive substances
5, installation site should be no serious jolt and shock
Technical Datasheet
Phase number Three phases Single phase
input voltage(V) single phase(150v-250v) three phase(310v-450v)
output voltage(V)single phase 220V±1% three phases 380V±1%
frequency Hz 50~60 Noise ≤50db
Efficeincy ≥92%(full load) Wareform distortion <5%(addition)
Divance ±0.5% Overvoltage alarm ≤246V±4V(output)
Stability time ≤0.05s Temperature -10℃~+40℃
Peak absorption input 3000V/3µs peak output≤30V
JJW/JSWSERIES MODEL SIZE
Model | Output Power | Outline(L*W*H) | Net Weight |
JJW-1K | 1KVA | 33*17*27cm | 14kg |
JJW-2K | 2KVA | 38*18*31cm | 19kg |
JJW-3K | 3KVA | 41*20*33cm | 26kg |
JJW-5K | 5KVA | 46*23*37cm | 34kg |
JJW-10K | 10KVA | 50*25*42cm | 57kg |
JJW-15K | 15KVA | 60*28*45cm | 73kg |
JJW-20K | 20KVA | 60*28*45cm | 90kg |
JSW-3K | 3KVA | 45*34*65cm | 55kg |
JSW-6K | 6KVA | 47*40*85cm | 80kg |
JSW-9K | 9KVA | 47*40*85cm | 105kg |
JSW-15K | 15KVA | 55*44*90cm | 128kg |
JSW-20K | 20KVA | 58*48*98cm | 150kg |
JSW-30K | 30KVA | 58*48*98cm | 180kg |
JSW-50K | 50KVA | 65*70*116cm | 240kg |
