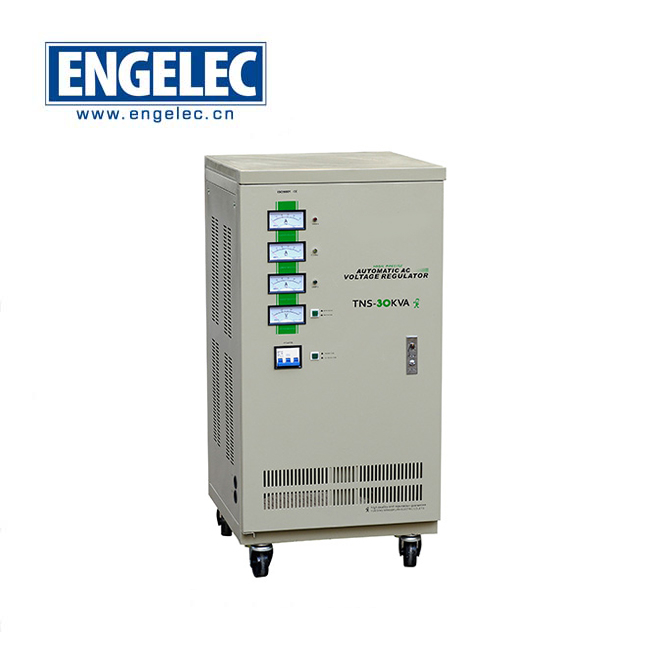

TNS Servo Motor Type Voltage Stabilizer

TNS three phases servo motor type fully automatic voltage regulator is combination of three SVC high function single phase automatic voltage stabilizers, the incoming power of power network is three phases four wires system, the output power is also three phases four wires with three electric meters to indicate three phases current separately, and a shift switch &voltage meter to shift and test each output voltage.
  • TNS

  • ENGELEC

  • TNS

Size:
Availability:

TNS Servo Motor Type Voltage Stabilizer


General

1) Input voltage:260V-430V
2) Output voltage:380V±3%
3) Frequency:50HZ/60HZ
4) Response time:<1S (against 10% input voltage deviation)
5) Efficiency:>90%
6) Ambient temperature:-10centigrates~+40centigrates
7) Relative humidity: <90%
8) Waveform distortion: Non-lack fidelity waveform
9) Insulation resistance:>5MΩ
10) Phase count: three phases


Technical Datasheet


Model

Output Power

Outline(L*W*H)

Net Weight

TNS-1.5K

1.5KVA

48.5*22.5*17cm

20kg

TNS-3K

3KVA

48.5*22.5*17cm

24kg

TNS-4.5K

4.5KVA

48.5*22.5*17cm

28kg

TNS-6K

6KVA

36*28*68cm

29kg

TNS-9K

9KVA

38*32*78cm

43kg

TNS-15K

15KVA

44*36*78cm

68kg

TNS-20K

20KVA

52*40*86cm

85kg

TNS-30K

30KVA

49*46*97cm

91kg

TNS-40K

40KVA

64*57*118cm

175kg

TNS-50K

50KVA

64*57*118cm

185kg

TNS-60K

60KVA

64*57*118cm

196kg

TNS-75K

75KVA

67*55*132cm

207kg

TNS-100K

100KVA

67*55*132cm

273kg

TNS-120K

120KVA

91*72*132cm

376kgs

TNS-150K

150KVA

91*72*132cm

412kgs
