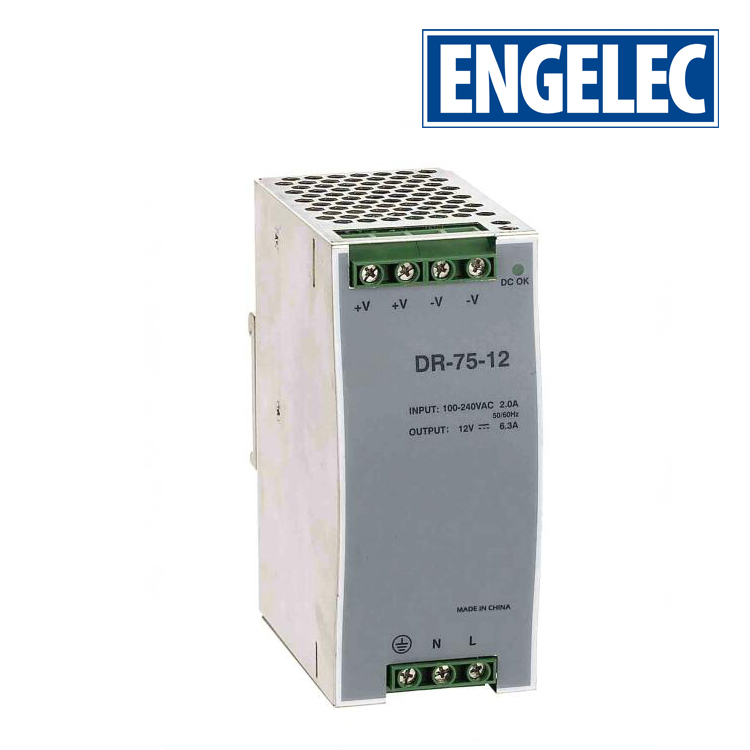

DIN Rail Mounted Power Supply DR-75
Features:
Isolation Class II
Protection: Short circuit, Overload, Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
CE (EMC LVD) RoHS certified
2 years warranty
Specification:
MODEL | DR-75-12 | DR-75-24 | DR-75-48 | |
OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
CURRENT RANGE | 0 ~ 6.3A | 0 ~ 3.2A | 0 ~ 1.6A | |
RATED CURRENT | 6.3A | 3.2A | 1.6A | |
RATED POWER | 76W | 76.8W | 76.8W | |
RIPPLE & NOISE | 100mVp-p | 150mVp-p | 240mVp-p | |
VOLTAGE ADJ. RANGE | 12 ~ 14V | 24 ~ 28V | 48 ~ 53V | |
VOLTAGE TOLERANCE | 2.0% | 1.0% | 1.0% | |
LINE REGULATION | 0.5% | |||
LOAD REGULATION | 1.0% | |||
SETUP, RISE TIME | 1000ms, 60ms/230VAC 1800ms, 60ms/115VAC at full load | |||
HOLD UP TIME | 60ms/230VAC 12ms/115VAC at full load | |||
INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||
FREQUENCY | 47 ~ 63Hz | |||
POWER FACTOR | ||||
EFFICIENCY | 76% | 80% | 81% | |
AC CURRENT | 1.6A/115V 0.96A/230V | |||
INRUSH CURRENT | COLD START 20A/115VAC 40A/230VAC | |||
LEAKAGE CURRENT | <1mA / 240VAC | |||
PROTECTION | OVER LOAD NOTE.6 | 105 ~ 150% rated output power | ||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
OVER VOLTAGE | 15 ~ 16.5V | 29 ~ 34V | 58 ~ 65V | |
Protection type : Shut down o/p voltage, re-power on to recover | ||||
OVER TEMP | 85oC 5 (TSW1) detect on heat sink of power transistor | |||
Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
OTHERS | MTBF | 123.1K hrs min. MIL-HDBK-217F (25 ) | ||
DIMENSION | 55.5*125.2*100mm (W*H*D) | |||
PACKING | 0.6Kg; 20pcs/13Kg/1.29CUFT |
