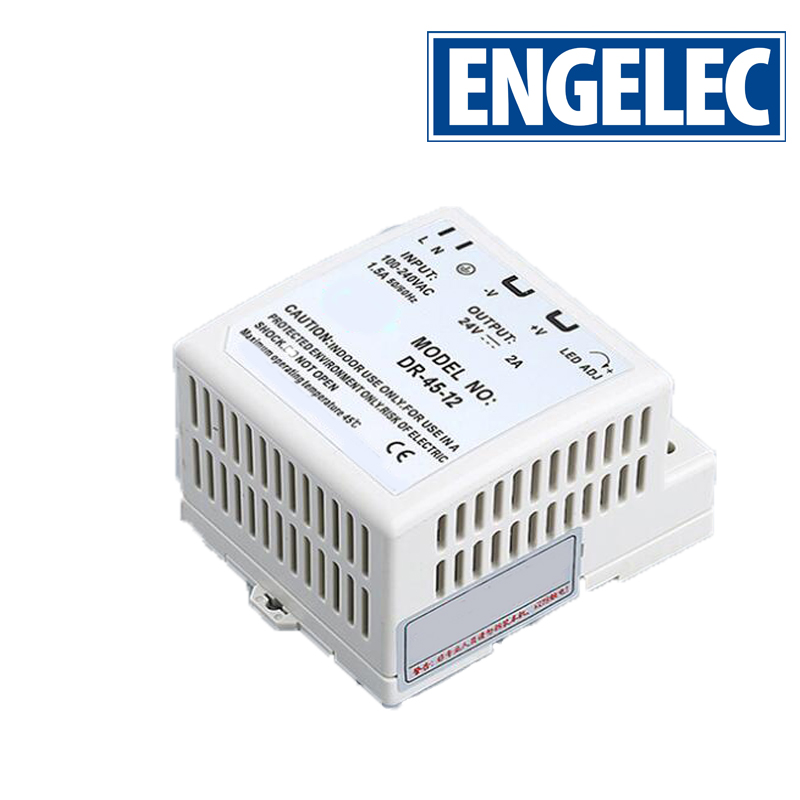

DIN Rail Mounted Power Supply DR-45
Features:
Isolation Class II
Protection: Short circuit, Overload, Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
CE (EMC LVD) RoHS certified
2 years warranty
Specification:
Model | DR-45-5 | DR-45-12 | DR-45-15 | DR-45-24 | |
OUTPUT | DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 5A | 3.5A | 2.8A | 2A | |
Current Range | 0-5A | 0-3.5A | 0-2.8A | 0-2A | |
Rated Power | 25W | 42W | 42W | 48W | |
Ripple & Noise (max.) Note.2 | 100mVp-p | 200mVp-p | 240mVp-p | 480mVp-p | |
Efficiency | 72% | 77% | 77% | 80% | |
Voltage Tolerance Note.3 | ±2% | ±1% | ±1% | ±1% | |
LINE REGULATION | ±1% | ±1% | ±1% | ±1% | |
LOAD REGULATION | ±1% | ±1% | ±1% | ±1% | |
Setup, Rise Time | 800ms,60ms/230VAC at full load | ||||
Hold Up Time | 100ms/230VAC at full load | ||||
INPUT | Voltage Range | 90~264VAC 120~370VDC | |||
FREQUENCY RANGE | 47~63Hz | ||||
AC Current | 1.5A/115V 0.75A/230V | ||||
Inrush Current | Cold start 28A/115V 56A/230V | ||||
PROTECTION | Over Load | 105%~150% rated output power | |||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | |||||
Protection type: Shut down o/p voltage, re-power on to recover | |||||
ENVIRONMENT | Working Temp., | -20°C~+60°C; (Refer to "Derating Curve") | |||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
Storage Temp., Humidity | -40°C~+85°C; 10%~95%RH | ||||
Temp. Coefficient | ±0.03%/°C(0~50°C) | ||||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | ||||
SAFETY | Withstand Voltage | I/P-O/P: 3KVAC | |||
Isolation Resistance | I/P-O/P: 100M Ohms / 500VDC | ||||
EMC EMISSION | Compliance to EN55011, EN55022 (CISPR22) Class B, EN61000-3-2,-3 | ||||
EMC IMMUNITY | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A | ||||
OTHERS | MTBF | 441.5K hrs min. MIL-HDBK-217F (25°C) | |||
DIMENSION | 93*78*67mm (L*W*H) | ||||
NOTE | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. The final equipment must be re-confirmed that it still meets |
